CMP Sensor

WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

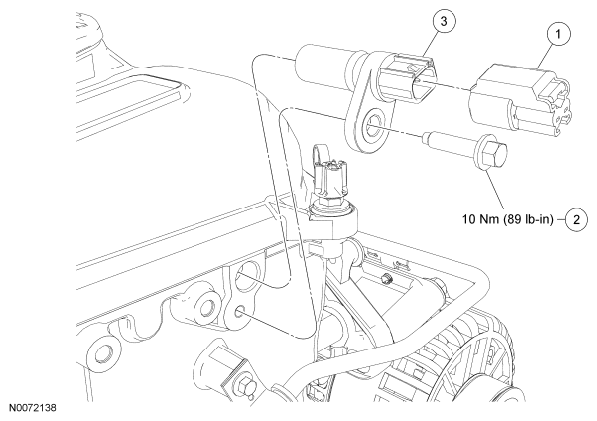

Fig 1: Camshaft Position Sensor, Electrical Connector And Bolt With Torque Specifications
G06395460Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - CMP sensor electrical connector
2 N806155 CMP sensor bolt
3 6B288 CMP sensor
