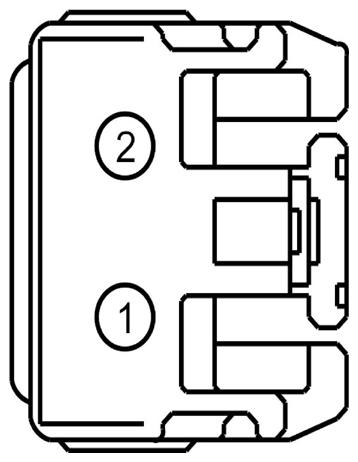

Driver Seat Module (DSM) Connector End View (C341A)
WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | CBX05 (VT-RD) | 14 | FUSE - 74 OR CIRCUIT BREAKER | |
| 2 | GD906 (BK-GY) | 14 | GROUND - PILLAR A LEFT # 2ND STUD |
| Available Pigtail Kits | |
|---|---|

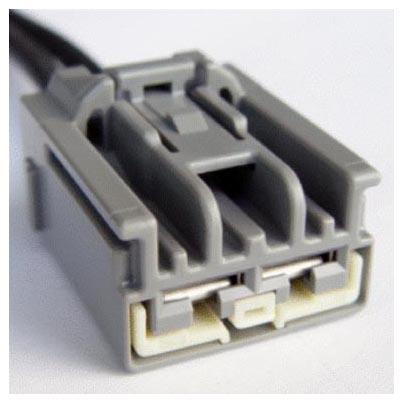

| Pigtail Kit Part Number WPT-236 | Service Part Number: 3U2Z-14S411-PA Gauge: 10 Pin material: Tin Cavities: 2 Vehicle Uses
|
