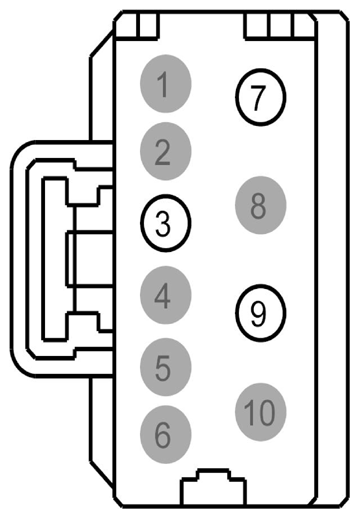

Electronic Locking Differential (Eld) Module Connector End View (C2613B)
WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | * | * | Not Used | |
| 2 | * | * | Not Used | |
| 3 | GD123 (BK-GY) | 16 | GROUND - FENDER FRONT RIGHT | |
| 4 | * | * | Not Used | |
| 5 | * | * | Not Used | |
| 6 | * | * | Not Used | |
| 7 | SBB68 (GN-RD) | 14 | FUSE - 68 OR CIRCUIT BREAKER | |
| 8 | * | * | Not Used | |
| 9 | CCF31 (BN-VT) | 16 | CTRL MOD. - REAR DIFFERENTIAL LOCK | |
| 10 | * | * | Not Used |

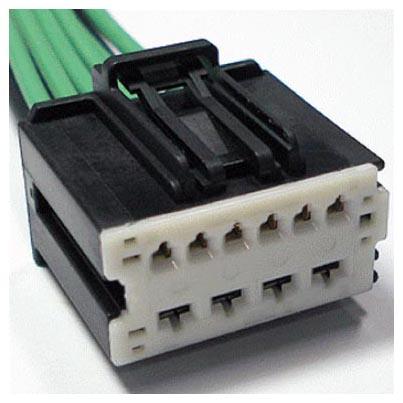

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-1042 | Service Part Number: AU2Z-14S411-CA Gauge: 12 14 Pin material: Tin & Silver Cavities: 10 Vehicle Uses
|
