Interior/Map Lamps Assembly, Front Connector End View (C929)
WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

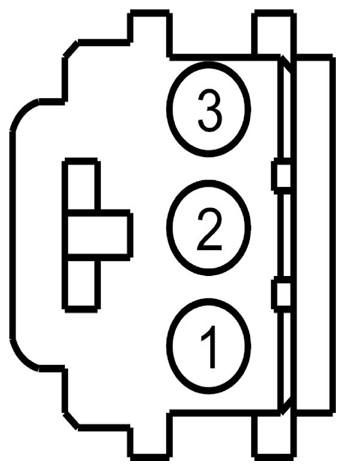

| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | GD139 (BK-YE) | 22 | GROUND - COWL SIDE/PILLAR A RIGHT # 2ND POINT (6L2T) | |
| 2 | VLN33 (GY-VT) | 22 | CTRL MOD. - INTERIOR/COURTESY LAMP DIMMING (THEATRE) | |
| 3 | CLN09 (YE-GN) | 22 | RELAY - BATTERY SAVER (E.G. SWITCH OFF INTERIOR LIGHTING) |
| Available Pigtail Kits | |
|---|---|

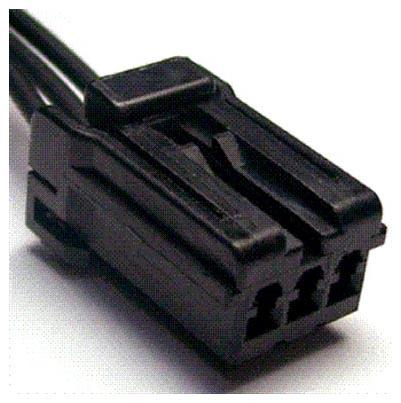

| Pigtail Kit Part Number WPT-947 | Service Part Number: 3U2Z-14S411-ENAB Gauge: 14 Pin material: Tin Cavities: 3 Vehicle Uses
|

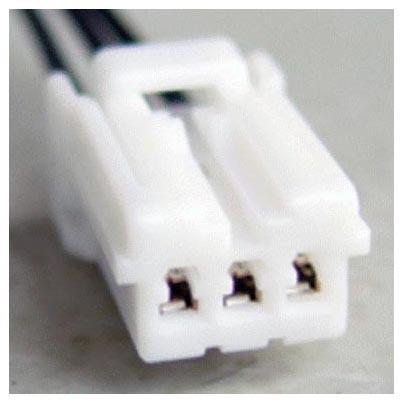

| Pigtail Kit Part Number WPT-1304 | Service Part Number: 3U2Z-14S411-UYB Gauge: 18 Pin material: Tin (greased) Cavities: 3 Vehicle Uses
|

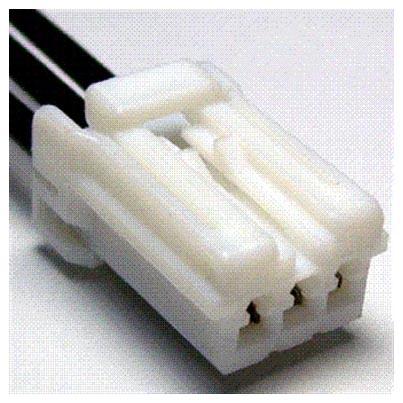

| Pigtail Kit Part Number WPT-718 | Service Part Number: 3U2Z-14S411-ENAA Gauge: 20 Pin material: Tin Cavities: 3 Vehicle Uses |
