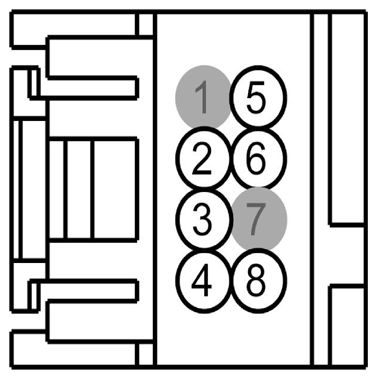

Master Window Control Switch Connector End View (C504)
WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | * | * | Not Used | |
| 2 | CPW12 (GN-OG) | 20 | SWITCH - POWER WINDOW DRIVER # FRONT PASSENGER DOWN | |
| 3 | CBP32 (GN-VT) | 20 | FUSE - 32 OR CIRCUIT BREAKER | Regular Cab |
| 4 | CPW11 (BU-GY) | 20 | SWITCH - POWER WINDOW DRIVER # DRIVER UP | |
| 5 | GD134 (BK-VT) | 20 | GROUND - PILLAR A LEFT # 2ND STUD | Regular Cab |
| 6 | CPW13 (BN-YE) | 20 | SWITCH - POWER WINDOW DRIVER # FRONT PASSENGER UP | |
| 7 | * | * | Not Used | |
| 8 | CPW10 (YE-VT) | 20 | SWITCH - POWER WINDOW DRIVER # DRIVER DOWN |

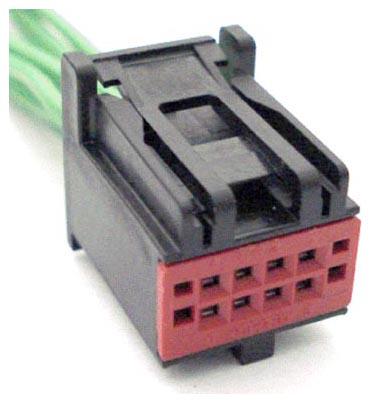

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-945 | Service Part Number: 9U2Z-14S411-RA Gauge: 18 Pin material: Silver Cavities: 8 Vehicle Uses
|
