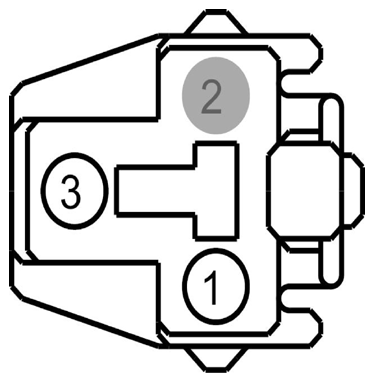

Power Point, Console 1 Connector End View (C3063)
WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | SBB66 (YE-RD) | 16 | FUSE - 66 OR CIRCUIT BREAKER | |
| 2 | * | * | Not Used | |
| 3 | GD138 (BK-WH) | 16 | GROUND - PILLAR A RIGHT |
| Available Pigtail Kits | |
|---|---|

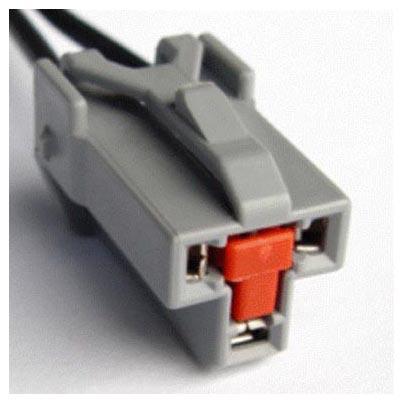

| Pigtail Kit Part Number WPT-1160 | Service Part Number: 3U2Z-14S411-SJB Gauge: 12 Pin material: Tin Cavities: 3 Vehicle Uses
|

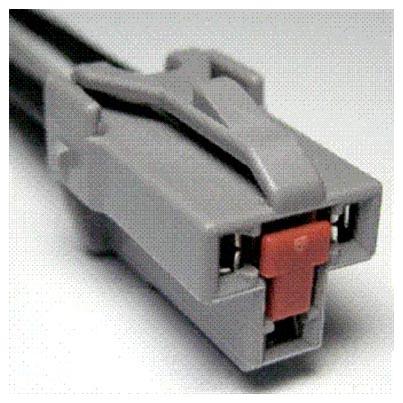

| Pigtail Kit Part Number WPT-682 | Service Part Number: 3U2Z-14S411-SJA Gauge: 14 Pin material: Tin Cavities: 3 Vehicle Uses
|
