Defective Insulation Stripping

WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

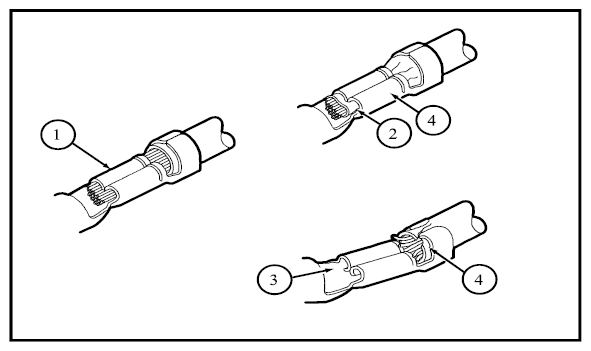

  1. = Proper crimp
  2. = Insulation not removed
  3. = Wire strands missing
  4. = Intermittent signals through pierced insulation
    Fig 1: Identifying Defective Insulation Stripping
    G09257396Courtesy of FORD MOTOR CO.
