Electrical Short Inside The Harness

WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

= Solder coated wire to ground
= Harness protective tape
= Intermittent short
Solder coated wire pierced through the insulation of another circuit.
= Grounding foil

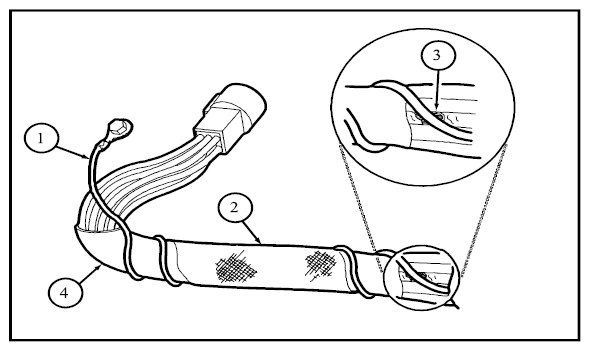

Fig 1: Identifying Electrical Short Inside Harness
Courtesy of FORD MOTOR CO.
