Electrical Short Within The Harness

WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Splice tape removed

= Intermittent short
Splice covered
= Wire strand
= Splice tape
= Harness tape

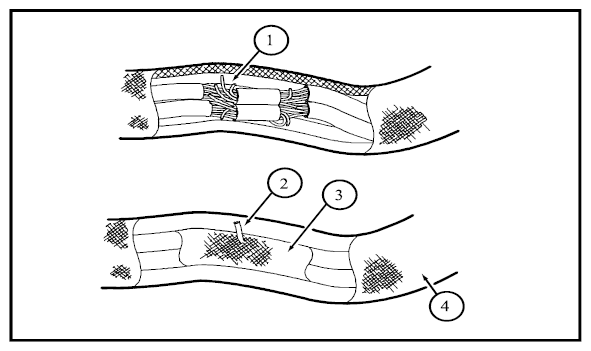

Fig 1: Identifying Electrical Short Within Harness
Courtesy of FORD MOTOR CO.
