Partially Mated Connectors

WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

= Seal
= Displaced tab
= Female half
= Seal
= Intermittent contact
= Male half
= Intermittent contact

Lock may be displaced into an unlocked position; pull on the connector to verify the lock.

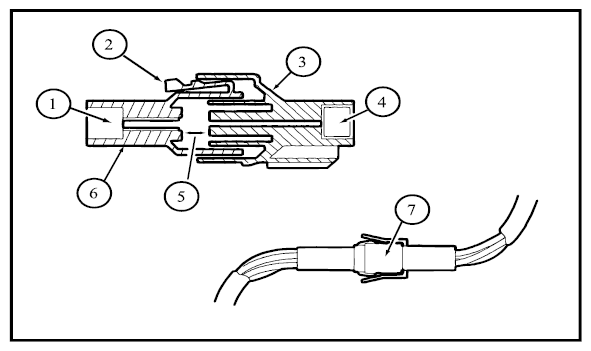

Fig 1: Identifying Partially Mated Connectors

Courtesy of FORD MOTOR CO.
