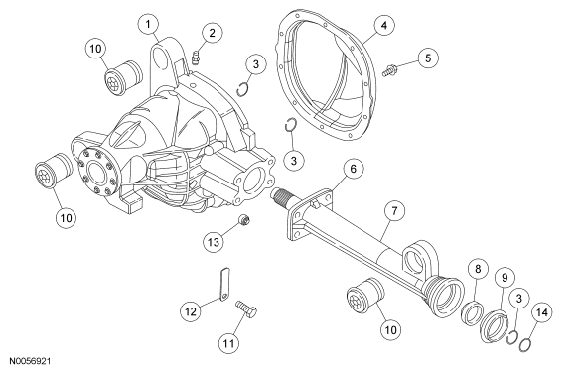

Front Axle Assembly - Disassembled View
WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 3C202 | Differential carrier assembly |
| 2 | 4338 | Axle housing vent |
| 3 | 4B422 | Circlips |
| 4 | 3N136 | Differential housing cover |
| 5 | 390919 | Differential housing cover bolt (10 required) |
| 6 | 3A380 | Intermediate shaft |
| 7 | 3B210 | Axle housing tube |
| 8 | 4B413 | Axle shaft bearing assembly (outer) |
| 9 | 4B416 | Axle shaft dust seal |
| 10 | 5638 | Front axle support mounting bushings (3 required) |
| 11 | N808703 | Axle housing tube bolt (4 required) |
| 12 | 4121 | Axle identification tag |
| 13 | 373098 | Fill plug |
| 14 | 4369 | O-ring |
