Manual Column
WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

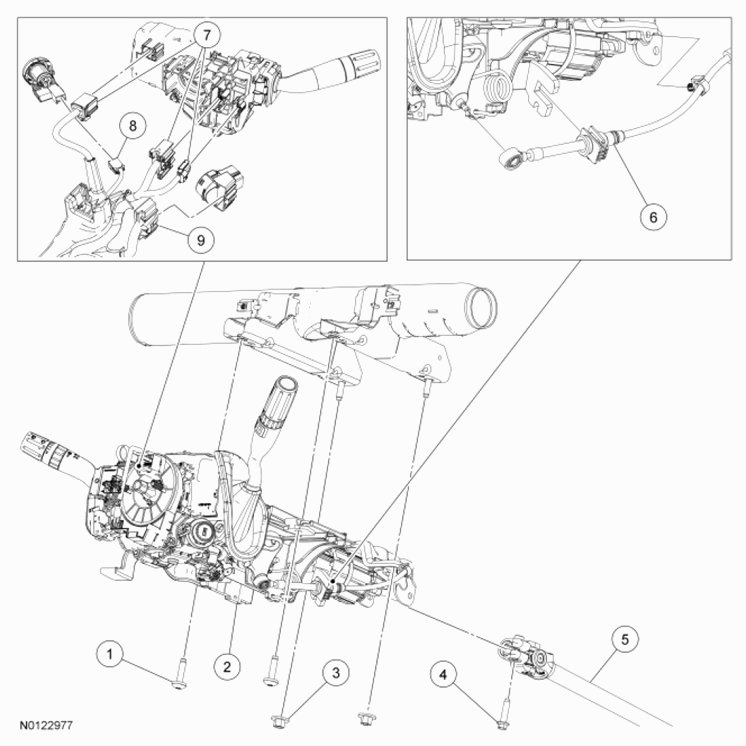

| Item | Part Number | Description |
|---|---|---|
| 1 | W715057 | Steering column bolt (2 required) |
| 2 | 3C529 | Steering column |
| 3 | N806423 | Steering column nut (2 required) |
| 4 | W714409 | Upper steering column shaft-to-steering column bolt |
| 5 | 3E751 | Upper steering column shaft |
| 6 | 7E395 | Selector lever cable (column shift only) |
| 7 | - | Steering Column Control Module (SCCM) electrical connectors (3 required) (part of 14401) |
| 8 | - | Passive Anti-Theft System (PATS) electrical connector (part of 14401) |
| 9 | - | Ignition switch electrical connector (part of 14401) |
