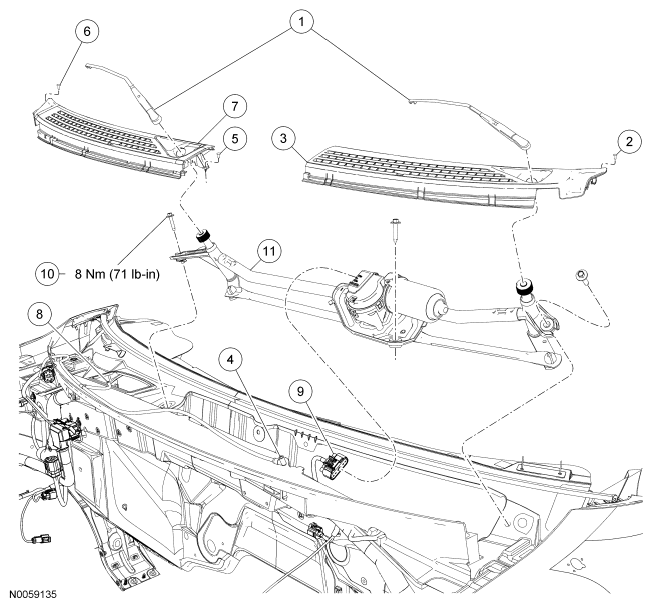

Wiper and Washer System - Exploded View
WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.
| Item | Part Number | Description |
|---|---|---|
| 1 | 17526 RH/17527 LH | Wiper arms |
| 2 | W710312 | Pin-type fastener |
| 3 | 022A69 | LH cowl grille panel |
| 4 | 17A605A | Washer hose |
| 5 | - | Cowl panel grille screw (part of 022A68) |
| 6 | W710312 | Pin-type fastener |
| 7 | 022A68 | RH cowl grille panel |
| 8 | 17A605A | Washer hose |
| 9 | - | Wiper motor electrical connector (part of 12A581) |
| 10 | N807391 | Wiper mounting arm and pivot shaft bolt (3 required) |
| 11 | 17508A | Wiper mounting arm and pivot shaft |
- For additional information, refer to the procedures in this article.
