Cruise-Control Module (C-CM): Removal

WARNING: This page is about a different car, the 2015 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The vertical and horizontal alignment procedures need to be carried out to align the sensor.

Cruise-Control Module (C-CM) or bracket

1.

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Jacking and Lifting .

2.

Remove the front bumper cover. For additional information, refer to Bumpers .

3.

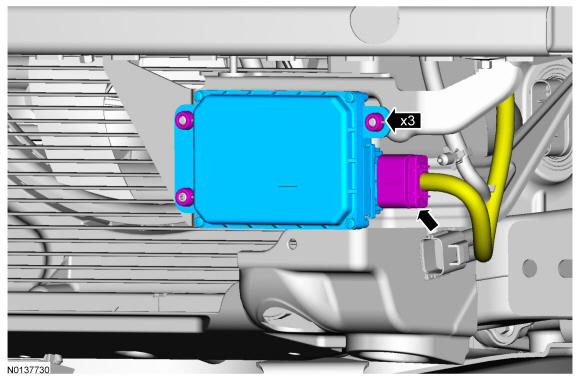

NOTE: Gently pry to release the C-CM from the ball studs

Courtesy of FORD MOTOR COMPANY

4.

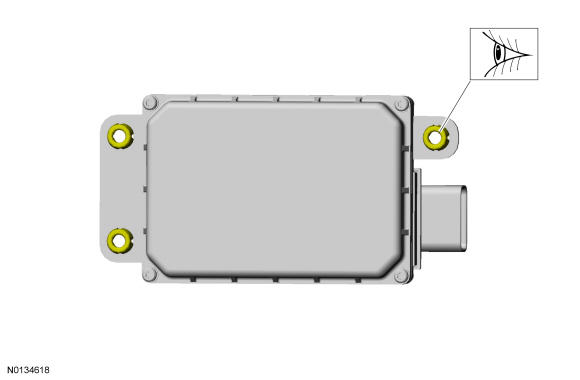

NOTE: If one plastic grommet is damaged C-CM, a new grommet should be installed.

Courtesy of FORD MOTOR COMPANY

Bracket

Courtesy of FORD MOTOR COMPANY
