OEM Ground Distribution: Grounds: G201

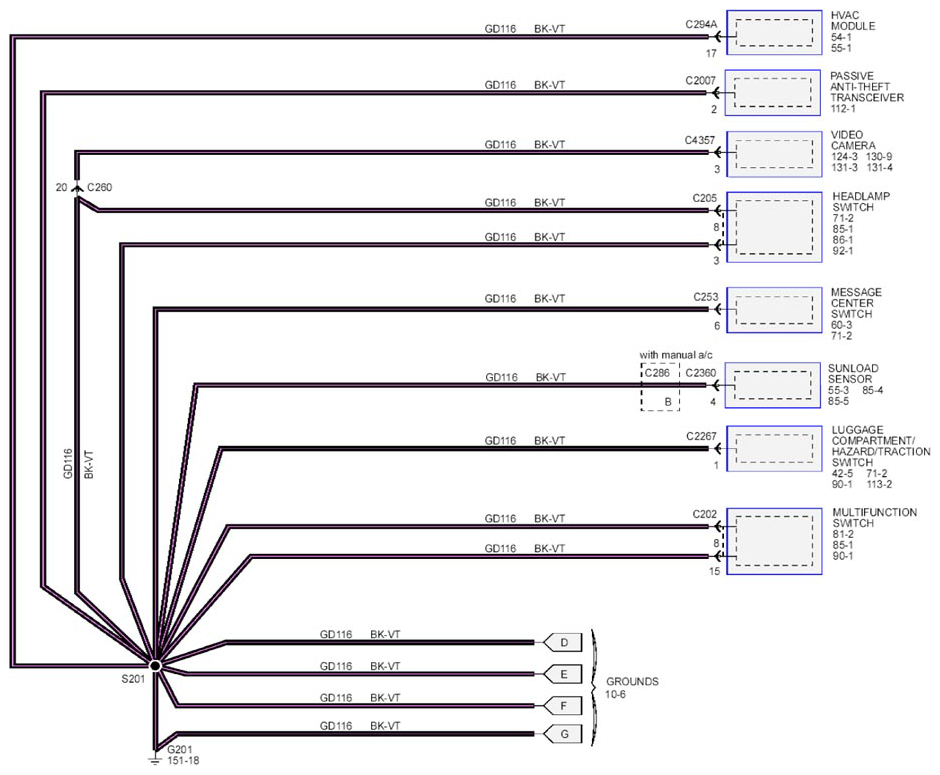

Fig 1: Ground Circuit Diagram - G201 (1 Of 2)
G07925309Courtesy of FORD MOTOR CO.

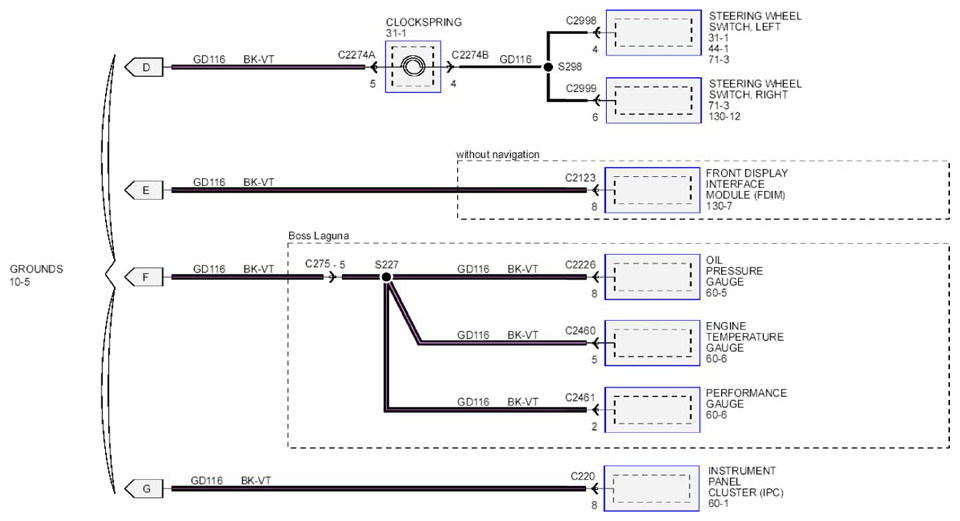

Fig 2: Ground Circuit Diagram - G201 (2 Of 2)
G07925310Courtesy of FORD MOTOR CO.
