Child Safety Seat Tether Anchor - LATCH: Notes

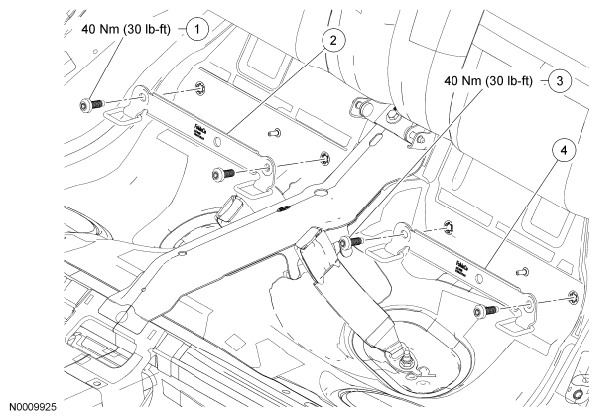

Fig 1: Child Safety Seat Tether Anchor With Torque Specifications - Latch
G06384793Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Lower anchors and tethers for children bolt (part of 601B28) (2 required)
2 601B28 Lower anchors and tethers for children
3 - Lower anchors and tethers for children bolt (part of 601B28) (2 required)
4 601B28 Lower anchors and tethers for children
