Front Seat Climate Control Module [SCME]: Removal

WARNING: This page is about a different car, the 2016 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

1.

NOTE: This step is only necessary when installing a new component.

NOTE: The PMI process must begin with the current SCME installed. If the current SCME does not respond to the diagnostic scan tool, the tool may prompt for As-Built Data as part of the repair.

Using a diagnostic scan tool, begin the PMI process for the SCME following the on-screen instructions.

2.

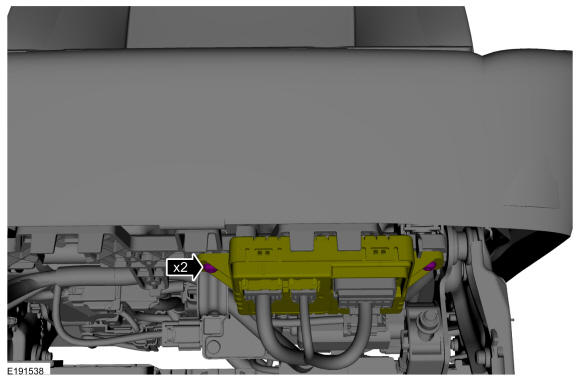

Remove the screws and position the SCME aside.

Courtesy of FORD MOTOR COMPANY

3.

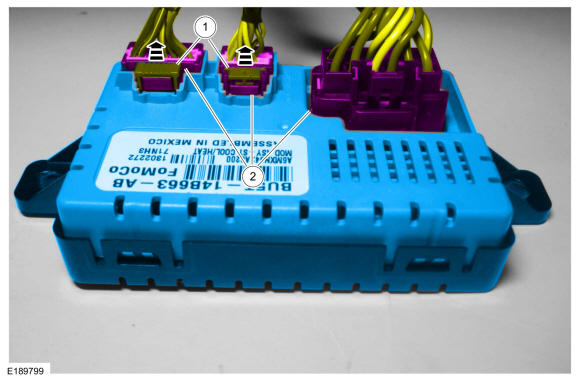

Remove the SCME.
1. 1.

  Release the locking wedges.
1. 2.

  Disconnect the electrical connectors.

Courtesy of FORD MOTOR COMPANY
