Driver Door Module (DDM): Removal

WARNING: This page is about a different car, the 2017 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

1.

NOTE: If installing a new module, it is necessary to upload the module configuration information to the diagnostic scan tool prior to removing the module. This information must be downloaded into the new module after installation.

Carry out the PMI procedure for the DDM. Refer to: Module Configuration - System Operation and Component Description .

2.

Remove the front door trim panel. Refer to: Front Door Trim Panel .

3.

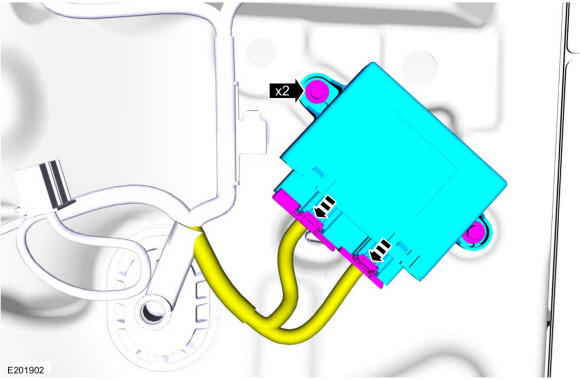

Remove the bolts and the DDM.
- Disconnect the electrical connectors.
  Torque: 44 lb.in (5 Nm)
