Driver Front Seat Module (DSM): Removal

WARNING: This page is about a different car, the 2017 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

1.

NOTE: This step is only necessary when installing a new component.

NOTE: The PMI process must begin with the current DSM installed. If the current DSM does not respond to the diagnostic scan tool, the tool may prompt for As-Built Data as part of the repair.

Using a diagnostic scan tool, begin the PMI process for the DSM following the on-screen instructions.

2.

NOTE: The DSM outboard mounting tab is located under the front seat front shield.

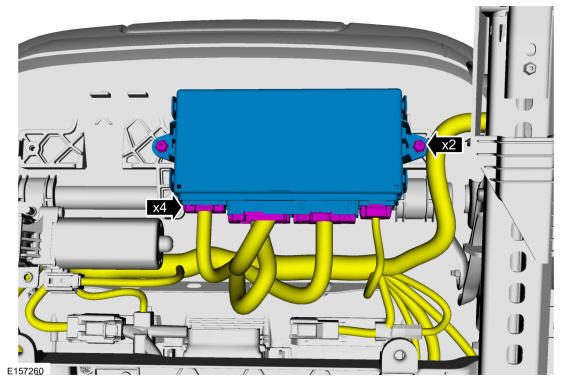

Remove the screws, disconnect the electrical connectors and remove the DSM.

Torque: 44 lb.in (5 Nm)
