Camshaft Position (CMP) Sensor

WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: LH shown in illustration, RH similar.

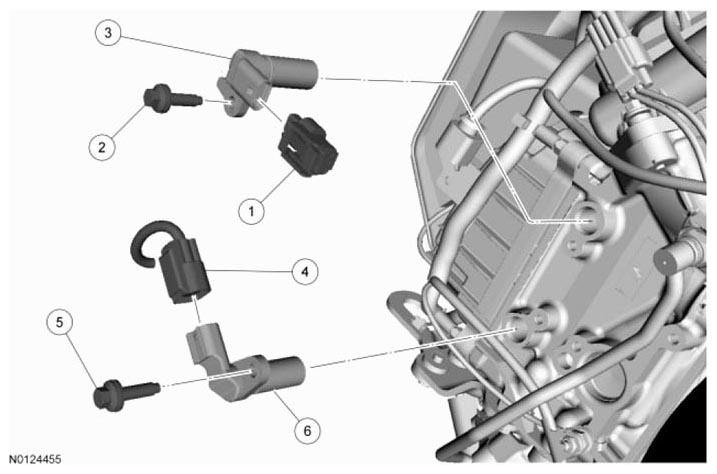

Fig 1: Identifying Camshaft Position Sensor Related Components (3.5L GTDI)
G07411537Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - LH intake CMP sensor electrical connector (part of 12C508)
2 W503275 LH intake CMP sensor bolt - 10 Nm (89 lb-in)
3 12K073 LH intake CMP sensor
4 - LH exhaust Camshaft Position (CMP) sensor electrical connector (part of 12C508)
5 W503275 LH exhaust CMP sensor bolt - 10 Nm (89 lb-in)
6 6B288 LH exhaust CMP sensor
