Cylinder Head Temperature (CHT) Sensor

WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: It is necessary to remove the RH fender splash shield to access the Cylinder Head Temperature (CHT) sensor. For additional information, REFER to FRONT END BODY PANELS .

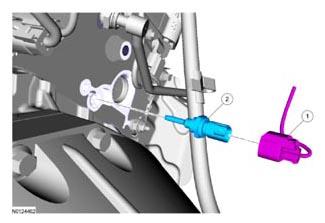

Fig 1: Identifying Cylinder Head Temperature Sensor With Electrical Connector (3.5L GTDI)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Cylinder Head Temperature (CHT) sensor electrical connector (part of 12C508)
2	6G004	CHT sensor - 10 Nm (89 lb-In)
