Cylinder Head Temperature (CHT) Sensor
WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The intake manifold must be removed to perform this procedure. For additional information, REFER to
ENGINE - 6.2L (2V)
.

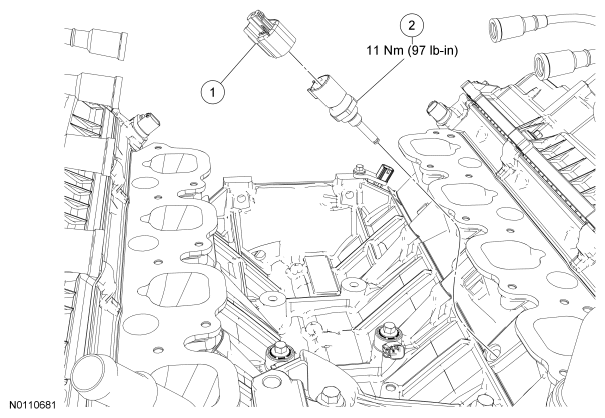

Fig 1: Cylinder Head Temperature Sensor And Electrical Connector With Torque Specifications - 6.2L (2V)
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Cylinder Head Temperature (CHT) sensor electrical connector (part of 14B485) |
| 2 | 6G004 | CHT sensor |
