Power Steering Pump: Notes
WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.

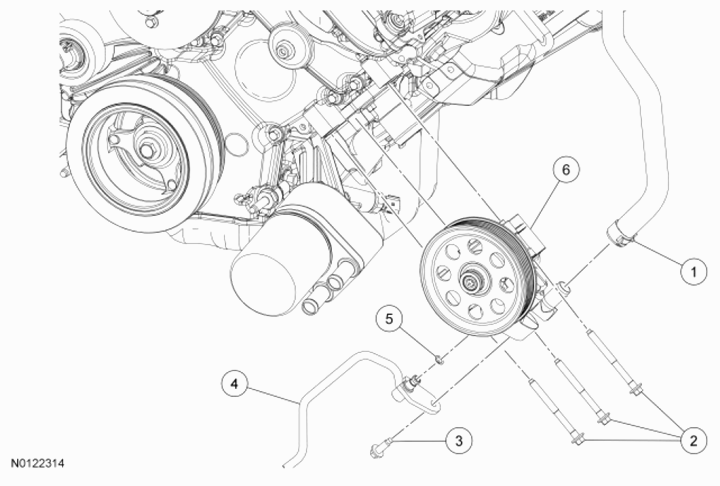

| Item |
Part Number |
Description |
| 1 |
3691 |
Power steering pump supply hose |
| 2 |
W715068 |
Power steering pump bolt (3 required) |
| 3 |
W714824 |
Pressure line clamp plate-to-pump bolt |
| 4 |
3A719 |
Pressure line |
| 5 |
3F887 |
Pressure line-to-pump O-ring seal (also part of 3A719) |
| 6 |
3A674 |
Power steering pump and pulley assembly |
