Cylinder Head Temperature (CHT) Sensor
WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
It is necessary to remove the RH fender splash shield to access the Cylinder Head Temperature (CHT) sensor. For additional information, refer to
BODY PANEL SYSTEM - FRONT END BODY PANELS
.

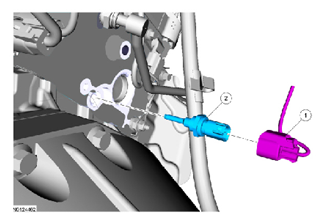

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Cylinder Head Temperature (CHT) sensor electrical connector (part of 12C508) |
| 2 | 6G004 | CHT sensor - 10 Nm (89 lb-In) |
