Camshaft Position (CMP) Sensor
WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

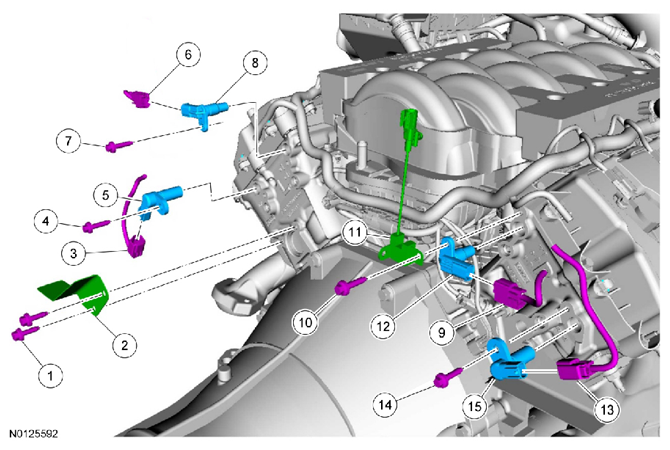

| Item | Part Number | Description |
|---|---|---|
| 1 | - | LH heat shield bolt - 10 Nm (89 lb-in) (2 required) |
| 2 | 39686 | LH heat shield |
| 3 | - | LH exhaust Camshaft Position (CMP) sensor electrical connector (part of 12A581) |
| 4 | W503278 | LH exhaust CMP sensor bolt - 10 Nm (89 lb-in) |
| 5 | 6B288 | LH exhaust CMP sensor |
| 6 | - | LH intake CMP sensor electrical connector (part of 12A581) |
| 7 | W503278 | LH intake CMP sensor bolt - 10 Nm (89 lb-in) |
| 8 | 12K073 | LH intake CMP sensor |
| 9 | - | RH intake CMP sensor electrical connector (part of 12A581) |
| 10 | W503278 | RH intake CMP sensor bolt - 10 Nm (89 lb-in) |
| 11 | 18801 | RH radio ignition interference capacitor |
| 12 | 12K073 | RH intake CMP sensor |
| 13 | - | RH exhaust CMP sensor electrical connector (part of 12A581) |
| 14 | W503278 | RH exhaust CMP sensor bolt - 10 Nm (89 lb-in) |
| 15 | 6B288 | RH exhaust CMP sensor |
