Special Tool(s)

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
G08596621
Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS) software with appropriate hardware, or equivalent scan tool

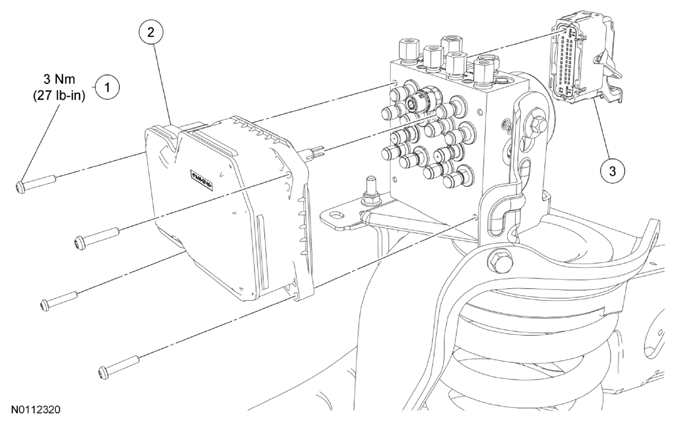

Fig 1: Anti-Lock Brake System Module, Electrical Connector And Screw With Torque Specifications
G08596622Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - ABS module screw (part of 2C219) (4 required)
2 2C219 ABS module
3 - ABS module electrical connector (part of 14405)
