Speaker - Parcel Shelf: Notes

WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

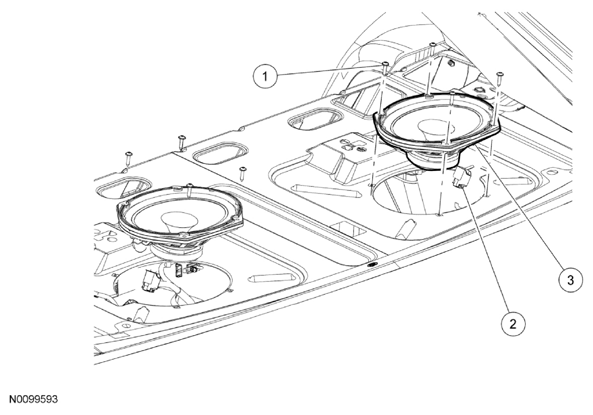

Fig 1: Identifying Parcel Shelf Speaker With Mounting Screws And Electrical Connector
G08646131Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W705314 Parcel shelf speaker screws (4 required)
2 - Parcel shelf speaker electrical connector (part of 14A005)
3 18808 Parcel shelf speaker
