Wiper and Washer System - Exploded View

WARNING: This page is about a different car, the 2015 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

Front Wipers

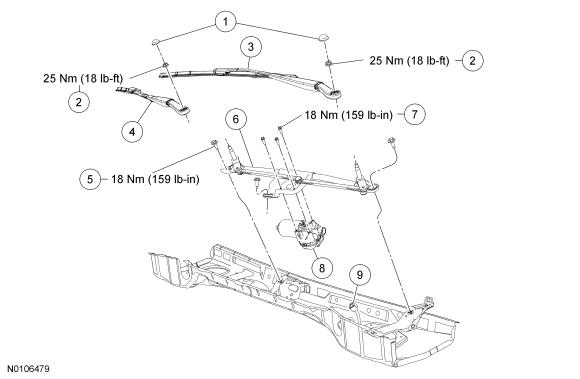

Fig 1: Exploded View Of Front Wipers Replacement Components With Torque Specifications
GFD95878Courtesy of FORD MOTOR COMPANY
Item Part Number Description
1 17C526 Wiper pivot arm nut covers
2 W708841 Wiper pivot arm nuts (2 required)
3 17527 LH wiper arm
3 17528 LH wiper blade
4 17526 RH wiper arm
4 17528 RH wiper blade
5 N806528 Wiper mounting arm and pivot shaft bolt (3 required)
6 17566 Wiper mounting arm and pivot shaft assembly
7 - Wiper motor bolt (part of 17508) (3 required)
8 17508 Wiper motor
9 14290 Electrical connector

Rear Wiper

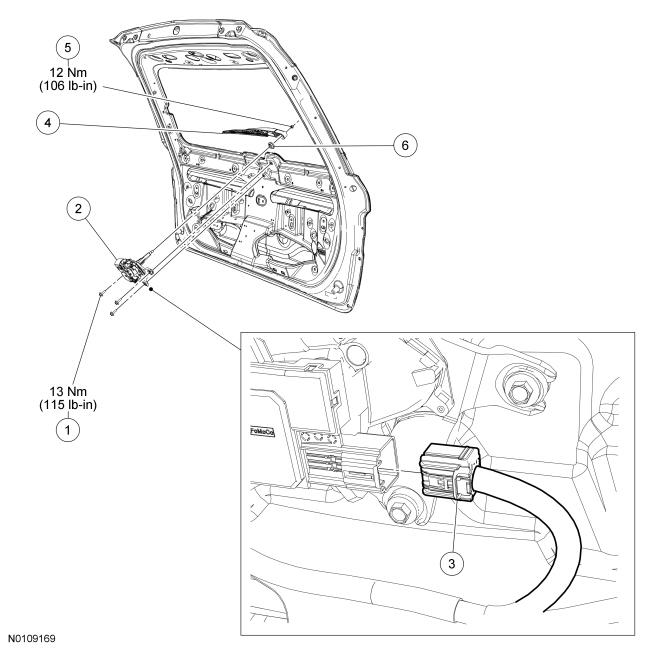

Fig 2: Exploded View Of Rear Wipers Replacement Components With Torque Specifications
GFD95879Courtesy of FORD MOTOR COMPANY
Item Part Number Description
1 N807658 Rear window wiper motor bolt (3 required)
2 17508 Rear window wiper motor
3 14A583 Rear window wiper motor electrical connector
4 17526 Rear window wiper pivot arm
4 17528 Rear window wiper blade
5 W708312 Rear window wiper pivot arm nut
6 17C412 Rear window wiper motor seal

  1. 1.

    For additional information, refer to the procedures in this article.
