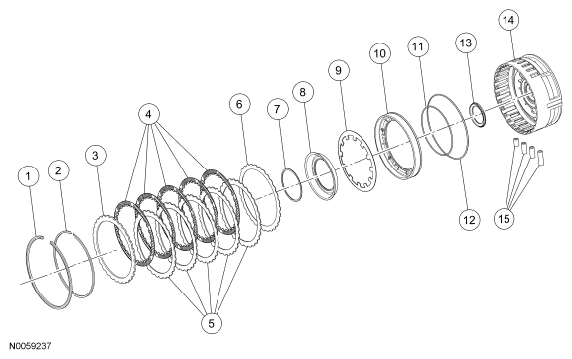

| 1 |
7D483 |
Center support retaining ring |
| 2 |
7D483 |
Intermediate clutch pack retaining ring |
| 3 |
7B066 |
Intermediate clutch pressure plate |
| 4 |
7B164 |
Intermediate clutch internal splined friction plates (quantity model dependent) |
| 5 |
7B442 |
Intermediate clutch external splined steel plates (quantity model dependent) |
| 6 |
7E085 |
Intermediate clutch cushion spring |
| 7 |
7A577 |
Intermediate clutch snap ring |
| 8 |
7B043 |
Intermediate clutch return spring retaining ring |
| 9 |
7A480 |
Intermediate clutch piston return spring |
| 10 |
7E005 |
Intermediate clutch piston (model dependant) |
| 11 |
7F225 |
Intermediate clutch piston inner seal |
| 12 |
7F224 |
Intermediate clutch piston outer seal |
| 13 |
7F373 |
Bearing (T6) |
| 14 |
7A130 |
Intermediate/low/reverse clutch center support |
| 15 |
7G199 |
Center support seals (2 - 7G199, 1 - 7G087, 1 - 7G484) |
