Variable Camshaft Timing (VCT) Oil Control Solenoid

NOTE: The valve cover must be removed to access the VCT oil control solenoid. For additional information, refer to ENGINE MECHANICAL - 3.7L .

NOTE: LH shown in illustration, RH similar.

NOTE: To install, tighten bolt(s) to 8 Nm (71 lb-in) plus an additional 20 degrees.

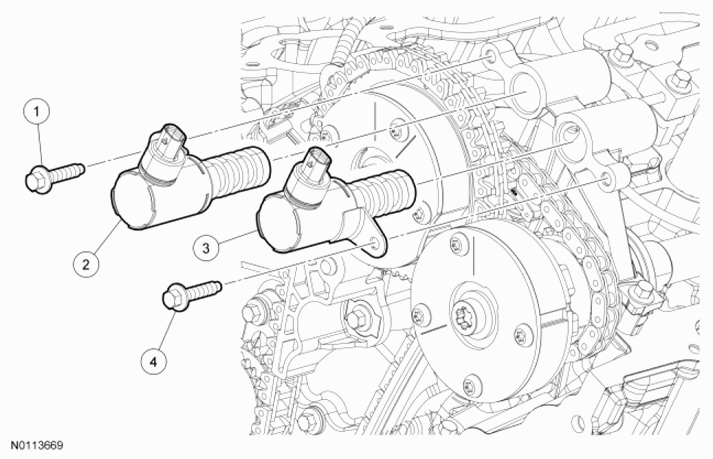

Fig 1: Identifying Variable Camshaft Timing Oil Control Solenoid Related Components (3.7L)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W500215	LH intake Variable Camshaft Timing (VCT) oil control solenoid bolt
2	6B297	LH intake VCT oil control solenoid
3	6B297	LH exhaust VCT oil control solenoid
4	W500215	LH exhaust VCT oil control solenoid bolt

Refer to the appropriate procedures and/or exploded views in this service information for any Warnings, Notices, Notes, Materials, Specifications, and Special Tools. Items in the exploded views may not be listed in order of removal.
