Engine Ignition Components - Exploded View

Engine Ignition Components - Exploded View

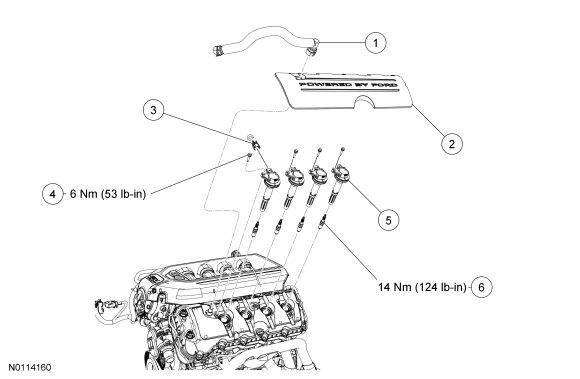

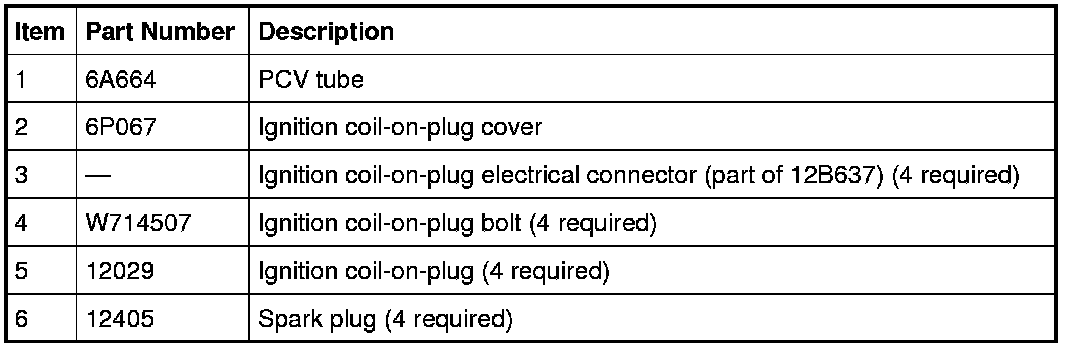

LH Ignition Coil-on-Plugs and Spark Plugs

NOTE: 5.0L (4V) shown, Boss 302 similar.

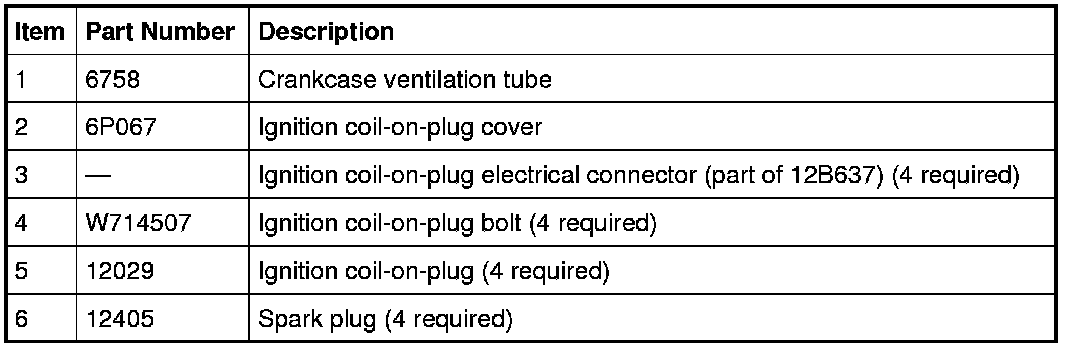

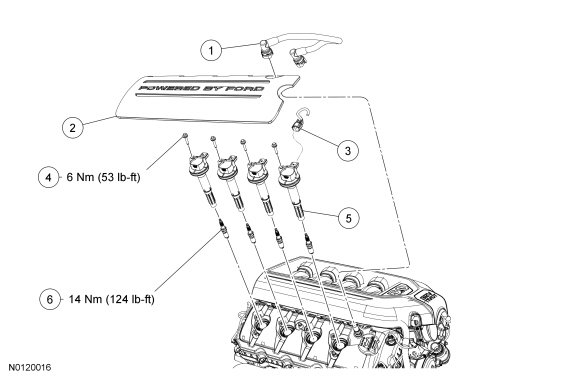

RH Ignition Coil-on-Plugs and Spark Plugs

NOTE: 5.0L (4V) shown, Boss 302 similar.










1. Refer to the procedures and/or exploded views for any Warnings, Notices, Notes, Materials, Specifications, and Special Tools. Items in the exploded views may not be listed in order of removal.
