Exterior Mirrors - Exploded View
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

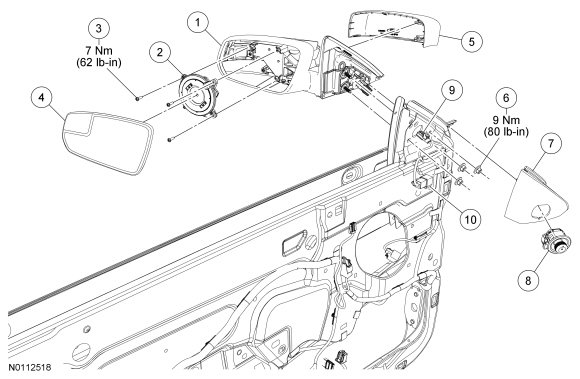

Exterior Mirrors - Exploded View
Exterior
Mirrors
- Exploded View
NOTE:
LH shown, RH similar.
