Blower Motor Resistor: Service and Repair

Blower Motor Speed Control

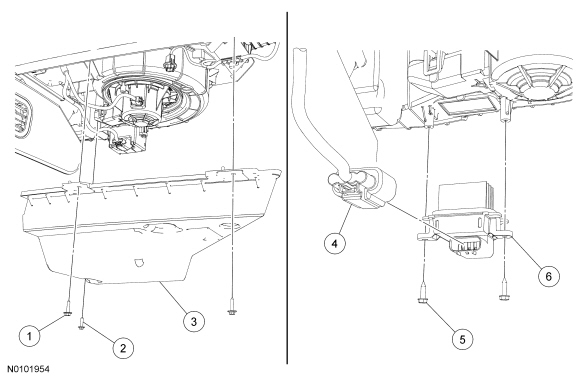

Removal and Installation

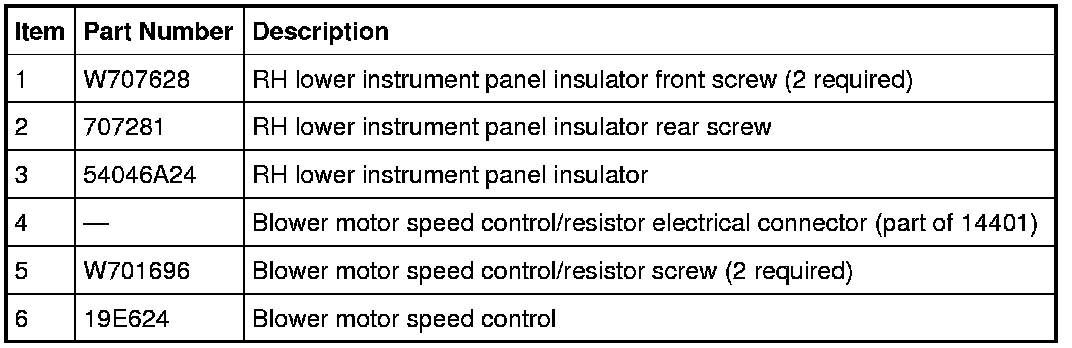

1. Remove the 3 RH lower instrument panel insulator screws and remove the insulator.

2. Disconnect the blower motor speed control electrical connector.

3. Remove the 2 blower motor speed control screws.

4. Remove the blower motor speed control.

5. To install, reverse the removal procedure.
