Cabin Temperature Sensor / Switch: Service and Repair

In-Vehicle Temperature Sensor









Removal and Installation

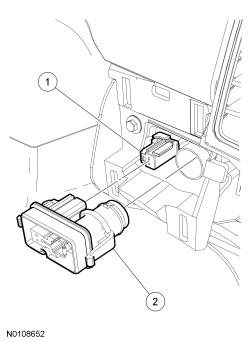

1. Remove the in-vehicle temperature sensor cover.

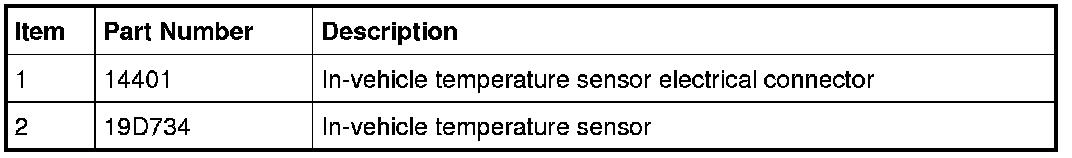

2. Disconnect the in-vehicle temperature sensor electrical connector.

3. Rotate the in-vehicle temperature sensor clockwise to detach it from the in-vehicle temperature sensor aspirator hose and remove the sensor.

4. To install, reverse the removal procedure.
