Intake Air Temperature (IAT) Sensor

Intake Air Temperature (IAT) Sensor









Removal and Installation

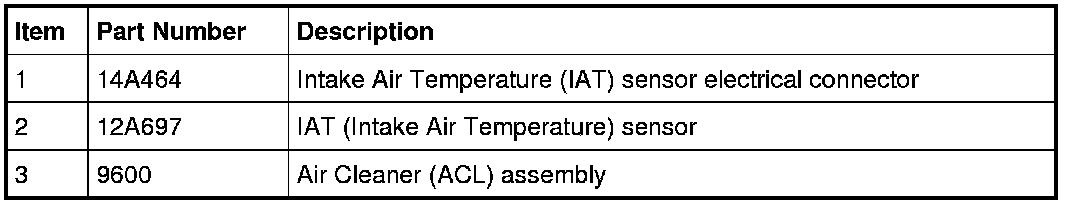

1. Disconnect the Intake Air Temperature (IAT) sensor electrical connector.

2. Remove the IAT (Intake Air Temperature) sensor.
- Lift the tab and turn the IAT (Intake Air Temperature) sensor counterclockwise to remove.






3. To install, reverse the removal procedure.
- Make sure the IAT (Intake Air Temperature) sensor tab is fully seated during installation.
