Oxygen Sensor

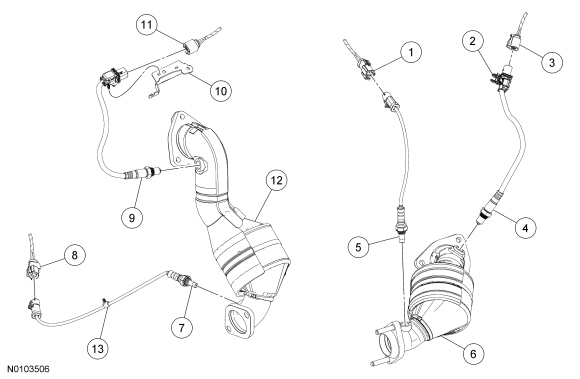

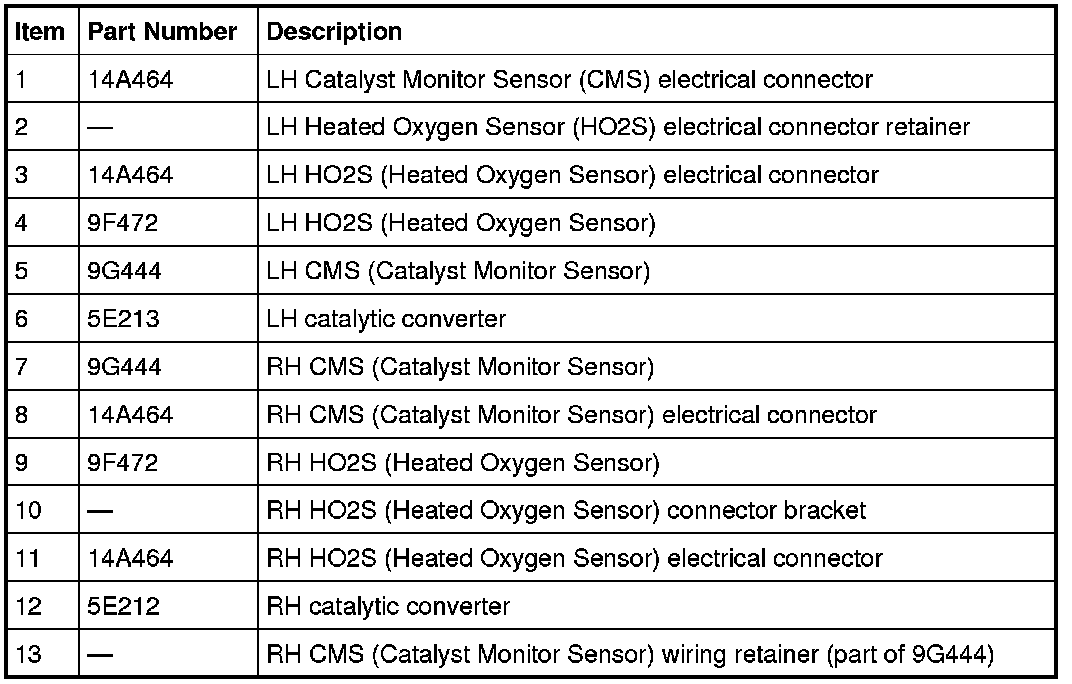

Heated Oxygen Sensor (HO2S) and Catalyst Monitor Sensor - Exploded View

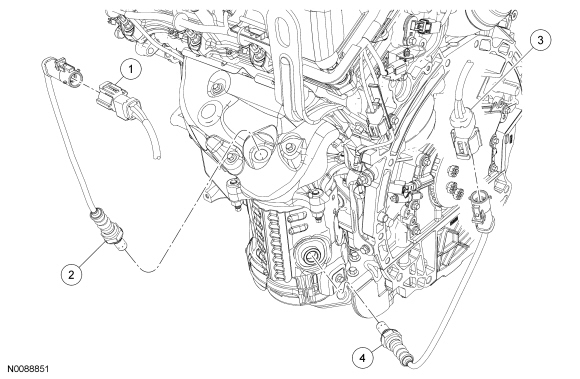

RH 3.5L Sensors

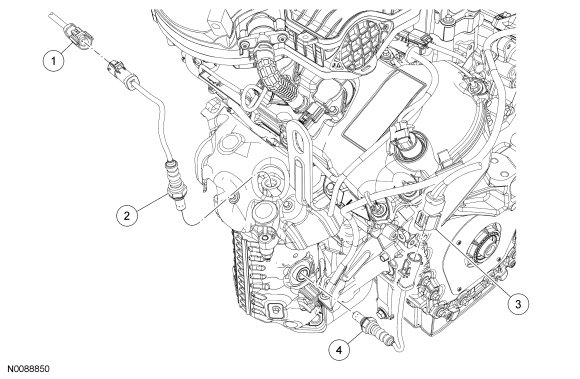

LH 3.5L Sensors

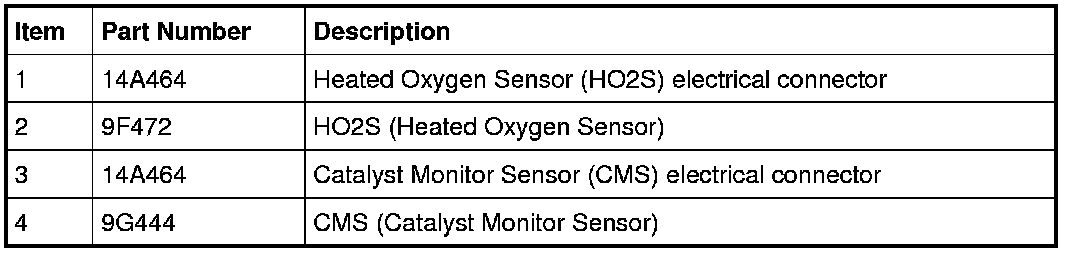

3.5L Gasoline Turbocharged Direct Injection (GTDI) Sensors
