Occupant Classification System Module (OCSM) - Manual Seat Track: Notes

WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

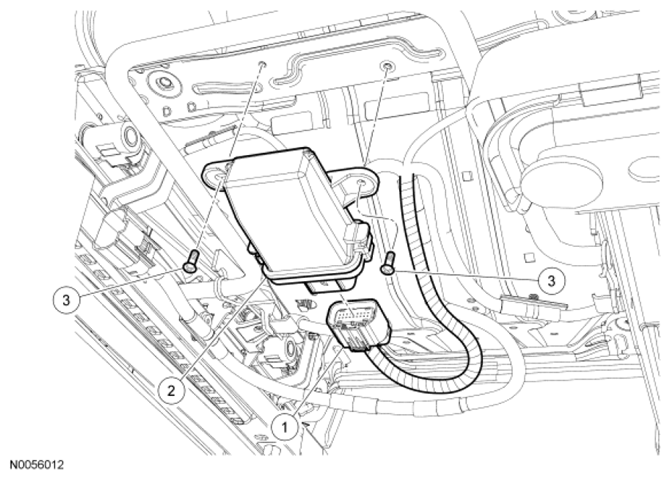

Fig 1: Identifying Occupant Classification System Module (OCSM) Components - Manual Seat Track

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION CHART

Item	Part Number	Description
1	-	Occupant Classification System Module (OCSM) electrical connector (part of 14A698)
2	14B422	OCSM
3	-	OCSM screws
