Fuel Pump Control Module: Notes

WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

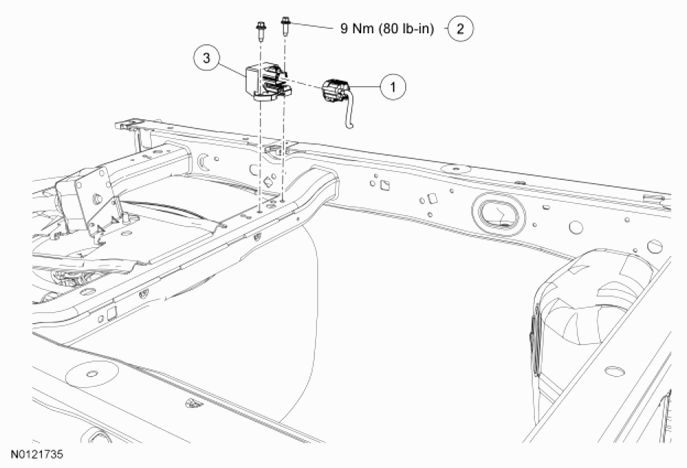

Fig 1: Fuel Pump Control Module, Bolt And Electrical Connector With Torque Specification

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Fuel Pump Control Module (FPCM) electrical connector (part of 14405)
2	W705549	FPCM bolt (2 required)
3	9D370	FPCM
