Global Positioning System Module (GPSM): Notes

WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

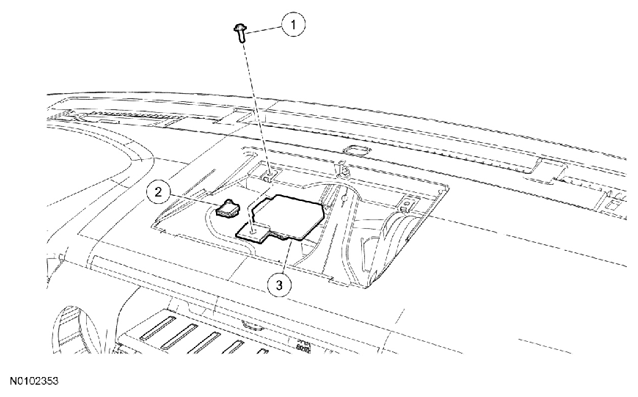

Fig 1: Identifying Global Positioning System Module, Connector And Mounting Screws

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W707628-S	Global Positioning System Module (GPSM) screw
2	-	GPSM electrical connector (part of 14401)
3	10E893	GPSM
