Tire Pressure Sensor: Notes

WARNING: The TPMS sensor battery may release hazardous chemicals if exposed to extreme mechanical damage. If these chemicals contact the skin or eyes, flush immediately with water for a minimum of 15 minutes and get prompt medical attention. If any part of the battery is swallowed, contact a physician immediately. When disposing of TPMS sensors, follow the correct procedures for hazardous material disposal. Failure to follow these instructions may result in serious personal injury.
NOTE: The TPMS sensor cannot be removed without disassembly of the wheel and tire.

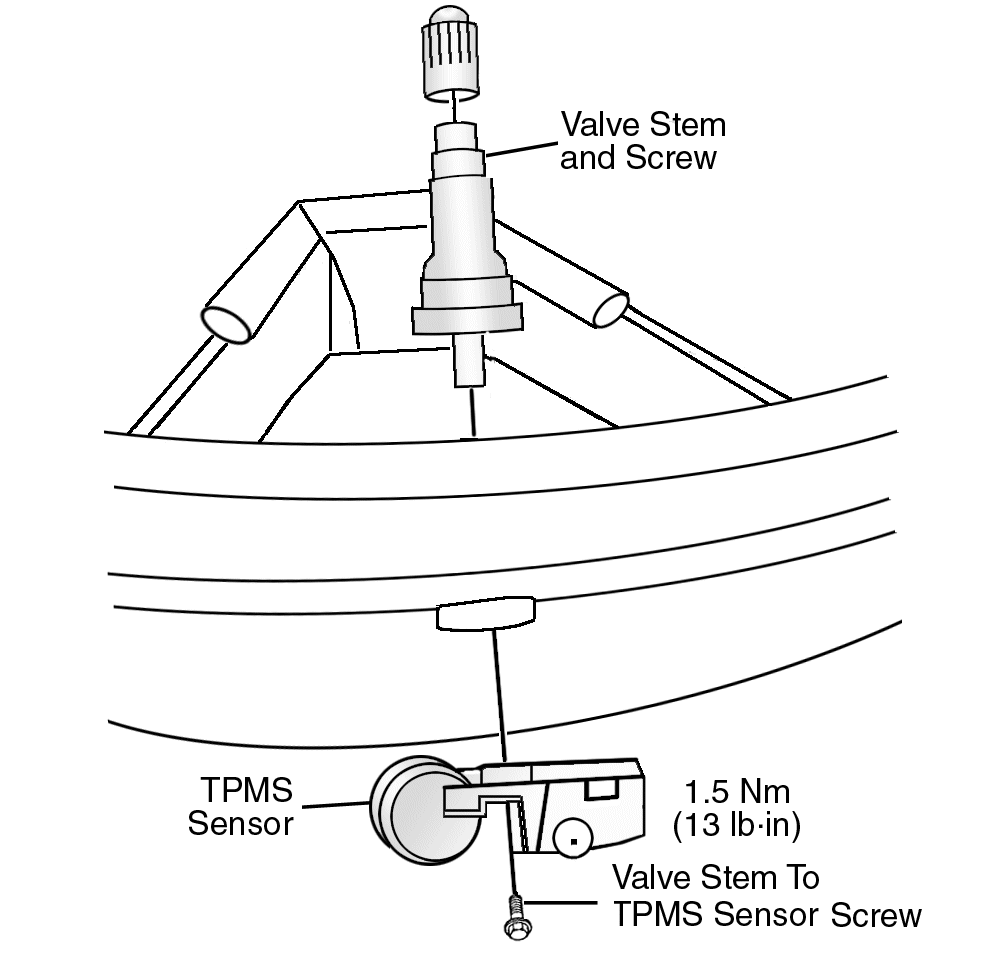

Fig 1: Exploded View Of TPMS Sensor
G00494503Courtesy of FORD MOTOR CO.
