Seat Cushion Second Row, 60 Percent: Assembly

WARNING: This page is about a different car, the 2015 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

  1. 1.

    Position the riser RH outer cover and install the 3 screws.

  1. 2.

    Position the riser RH inner cover and install the 2 screws.

  1. 3.

    Position the riser LH outer cover and install the 3 screws.

  1. 4.

    Position the riser LH inner cover and install the 2 screws

  1. 5.

    Position the stationary foot cover and install the screw

  1. 6.

    Position the cushion frame to the riser and hand start the cushion frame yoke-to-riser bolt, cushion frame-to-riser bolt and the 3 cushion frame-to-riser nuts.

    1. 1.

      Install the 3 cushion frame-to-riser nuts.
      • Tighten to 23 Nm (17 lb-ft).

    1. 2.

      Install the cushion frame-to-riser bolt.
      • Tighten to 48 Nm (35 lb-ft).

    1. 3.

      Install the cushion frame yoke-to-riser bolt.
      • Tighten to 48 Nm (35 lb-ft).

  1. 7.

    Position the inboard recliner and install the 3 inboard recliner-to-riser bolts and the inboard recliner-to-cushion frame yoke bolt in the sequence shown below.
    • Tighten to 48 Nm (35 lb-ft).

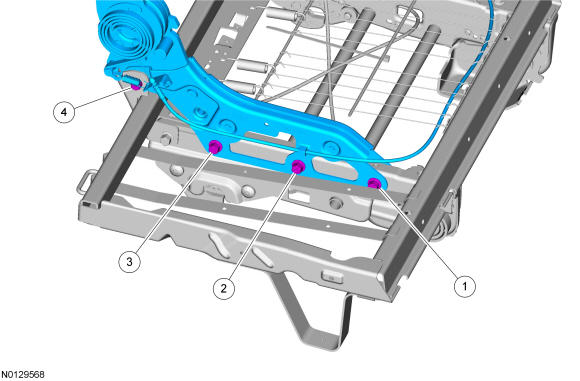

Fig 1: Inboard Recliner Bolts Tightening Sequence
GFD95687Courtesy of FORD MOTOR CO.

  1. 8.

    Attach the LH cable to the inboard recliner.

  1. 9.

    Install the outboard recliner.

    1. 1.

      Attach the inboard cable to the outboard recliner.

    1. 2.

      Install the outboard recliner-to-cushion frame bolts.
      • Tighten to 48 Nm (35 lb-ft).

    1. 3.

      Attach the outboard cable to the outboard recliner.

    1. 4.

      Install the 3 recliner cover screws.

  1. 10.

    Position the hinge assembly and install the hinge assembly-to-cushion frame bolts.
    • Tighten to 48 Nm (35 lb-ft).

  1. 11.

    Position the center occupant safety belt buckle and install the bolt.
    • Tighten to 40 Nm (30 lb-ft).

  1. 12.

    Install the outboard recliner outer cover.
    • Feed the strap through the cover.

  1. 13.

    Install the manual recline handle with the clip.

  1. 14.

    Position the inboard recliner LH cover and install the pin-type retainer and screw.

  1. 15.

    Install the inboard recliner RH cover.

  1. 16.

    Install the 60 percent backrest. For additional information, refer to Seat Backrest - Second Row, 60 Percent  in this service information.

  1. 17.

    Install the 60 percent rear seat. For additional information, refer to Seat - Second Row  in this service information.
