Accessing Mounting Bolts On an Inoperative Power Seat

WARNING: This page is about a different car, the 2015 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

Accessing Mounting Bolts On an Inoperative Power Seat

General Equipment

Drill(s)
WARNING: Wear protective gloves when handling components or parts that have pointed or sharp edges. Failure to follow this instruction may result in serious personal injury.
NOTE: Typical driver seat shown, other seats similar.

All seats

  1. 1.

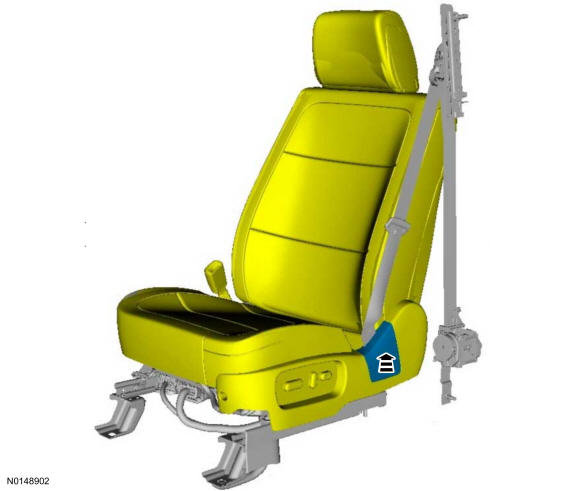

GFD95462Courtesy of FORD MOTOR COMPANY

  1. 2.

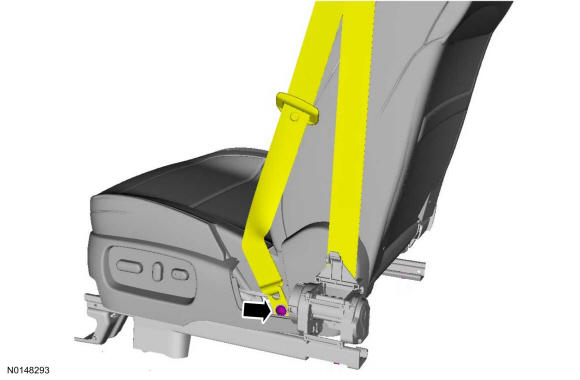

GFD95463Courtesy of FORD MOTOR COMPANY

  1. 3.

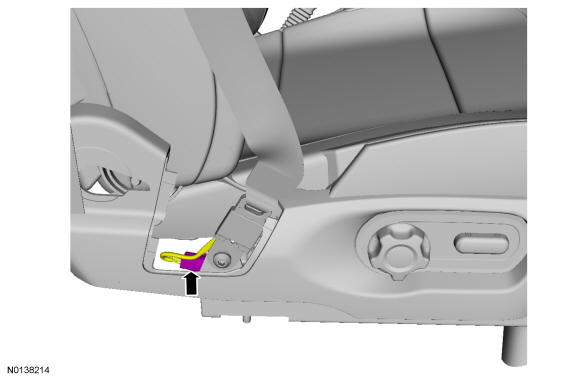

    Passenger seat.
GFD95464Courtesy of FORD MOTOR COMPANY

  1. 4.

GFD95465Courtesy of FORD MOTOR COMPANY

All seats except limo or livery seats

  1. 5.

GFD95466Courtesy of FORD MOTOR COMPANY

  1. 6.

GFD95467Courtesy of FORD MOTOR COMPANY

  1. 7.

GFD95468Courtesy of FORD MOTOR COMPANY

Limo or livery seats

  1. 8.

    1. 1.

      From under the cushion side shield, push out from behind the seat control switch bezel to start detachment.

    1. 2.

      NOTE: Do not pull out at the front of the seat control switch bezel, slide it rearward. Otherwise the seat control switch bezel retainers can break.

      -

GFD95469Courtesy of FORD MOTOR COMPANY

  1. 9.

GFD95470Courtesy of FORD MOTOR COMPANY

  1. 10.

GFD95471Courtesy of FORD MOTOR COMPANY

  1. 11.

GFD95472Courtesy of FORD MOTOR COMPANY

All seats

  1. 12.

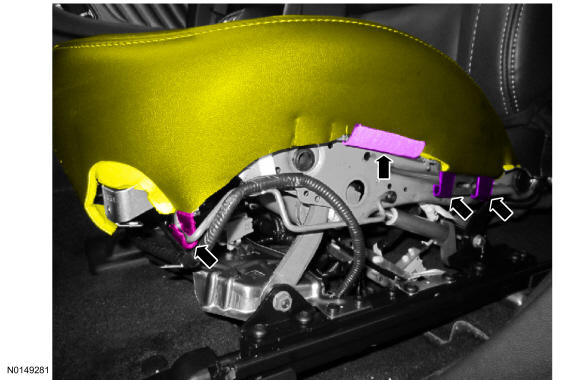

GFD95473Courtesy of FORD MOTOR COMPANY

  1. 13.

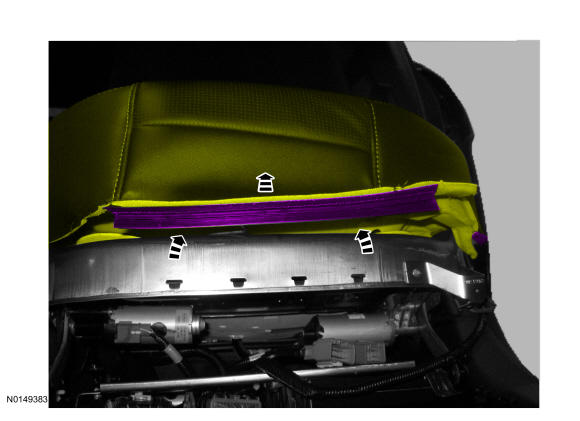

GFD95474Courtesy of FORD MOTOR COMPANY

  1. 14.

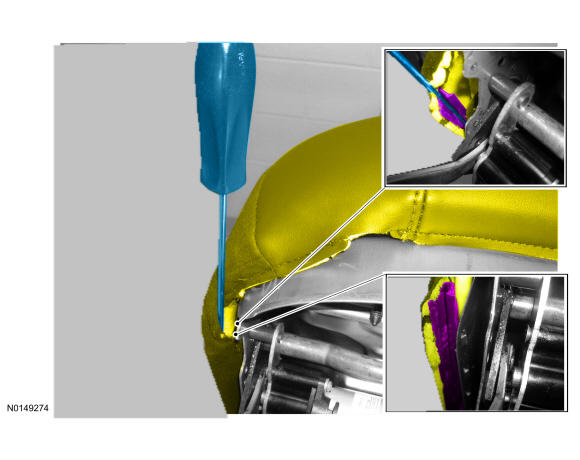

GFD95475Courtesy of FORD MOTOR COMPANY

Climate controlled seats

  1. 15.

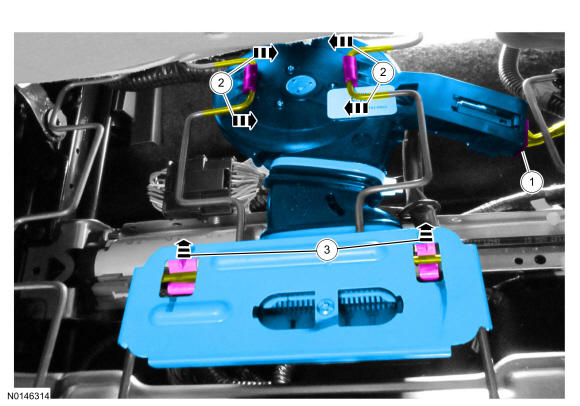

GFD95476Courtesy of FORD MOTOR COMPANY

All seats

  1. 16.

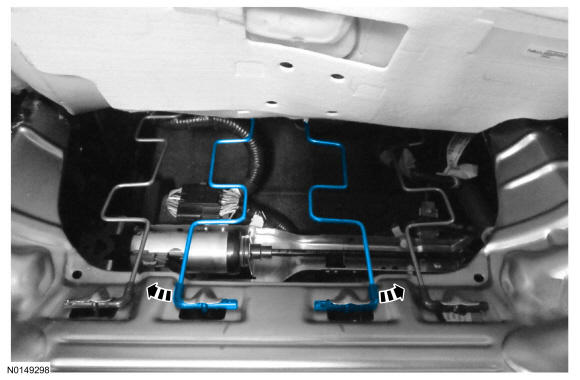

    NOTE: Note the position of the cushion support wires for installation.

    On both sides.

GFD95477Courtesy of FORD MOTOR COMPANY

  1. 17.

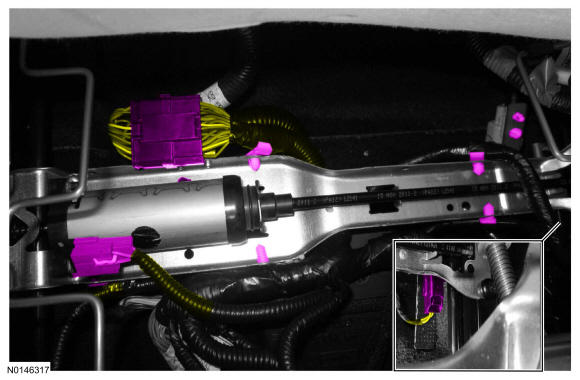

    NOTE: Seat cushion wire harness take-outs will vary with seat option content. Note the wire harness routing, attachment points and connections to the horizontal seat motor and bracket for installation.
GFD95478Courtesy of FORD MOTOR COMPANY

  1. 18.

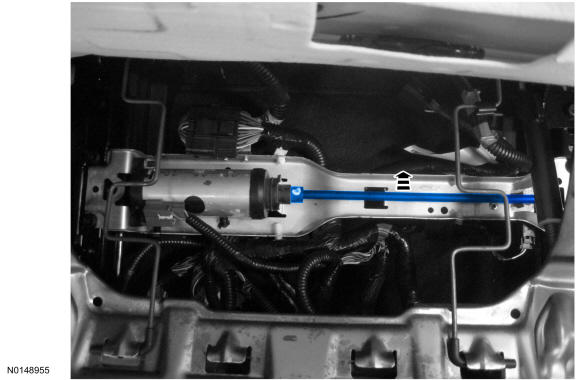

GFD95479Courtesy of FORD MOTOR COMPANY

  1. 19.

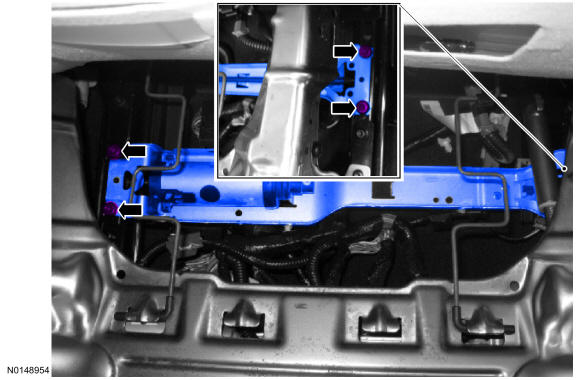

GFD95480Courtesy of FORD MOTOR COMPANY

  1. 20.

    NOTE: Pushing the seat forward or backward can aid in bolt hole alignment.

    On both sides.

GFD95481Courtesy of FORD MOTOR COMPANY

  1. 21.

    NOTE: When using a drill to move the seat track, do not move the seat track to its forward or rearward end of travel stops. Doing so can result in damage to the seat track requiring its replacement.

    NOTE: Be sure to drive the seat track evenly or the track will bind during movement.
    NOTE: Rotate the cables using 2 drills operating at similar speeds to most efficiently position the seat track.

    Insert both seat track cables then drive the inboard and outboard seat tracks forward until the rear mounting bolts are accessible. General Equipment: Drill(s).

GFD95482Courtesy of FORD MOTOR COMPANY

  1. 22.

    Remove the front seat. Refer to Seat - Front .

  1. 23.

    Install the front seat track motor. Refer to Seat Track Motor - Front . Do not install the seat at this time.

  1. 24.

    NOTE: Install as noted during removal.

    On both sides.

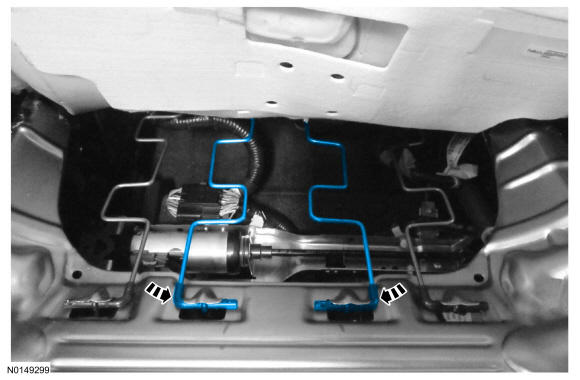

GFD95483Courtesy of FORD MOTOR COMPANY

Climate controlled seats

  1. 25.

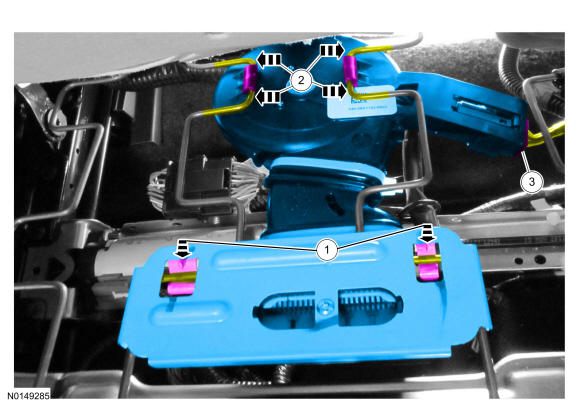

GFD95484Courtesy of FORD MOTOR COMPANY

All seats

  1. 26.

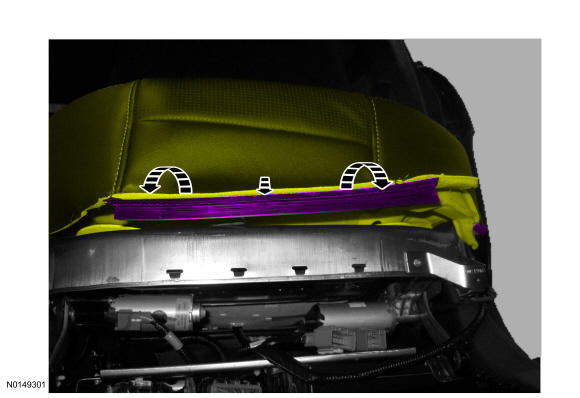

GFD95485Courtesy of FORD MOTOR COMPANY

  1. 27.

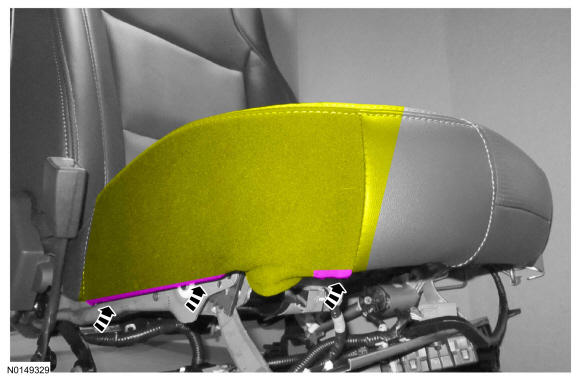

GFD95486Courtesy of FORD MOTOR COMPANY

  1. 28.

    NOTE: Typical seat shown, others similar.
GFD95487Courtesy of FORD MOTOR COMPANY

All seats except limo or livery seats

  1. 29.

GFD95488Courtesy of FORD MOTOR COMPANY

  1. 30.

GFD95467Courtesy of FORD MOTOR COMPANY

  1. 31.

GFD95489Courtesy of FORD MOTOR COMPANY

Limo or livery seats

  1. 32.

GFD95472Courtesy of FORD MOTOR COMPANY

  1. 33.

GFD95471Courtesy of FORD MOTOR COMPANY

  1. 34.

GFD95470Courtesy of FORD MOTOR COMPANY

All seats

  1. 35.

    Install the front seat. Refer to Seat - Front .

Driver seat with memory

  1. 36.

    If equipped with memory seat, operate the horizontal motor in both directions through the full range of travel to allow the DSM to correctly register stop positions and prevent premature stopping points after the repair is complete.
