Front Seat Motor Cable: Installation

WARNING: This page is about a different car, the 2015 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: The front seat motor cable service part for the driver seat is different than the service part for passenger seat. Make sure to install the correct service part required for the seat.

All seats

  1. 1.

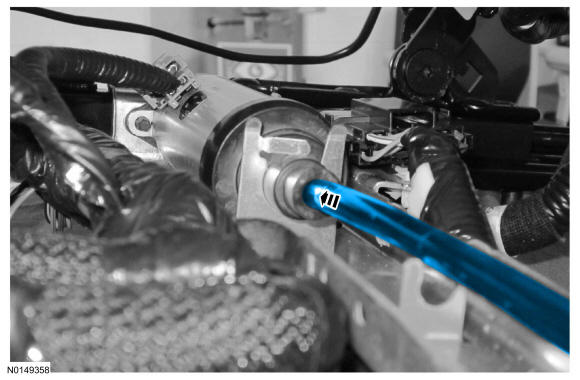

GFD95533Courtesy of FORD MOTOR COMPANY

  1. 2.

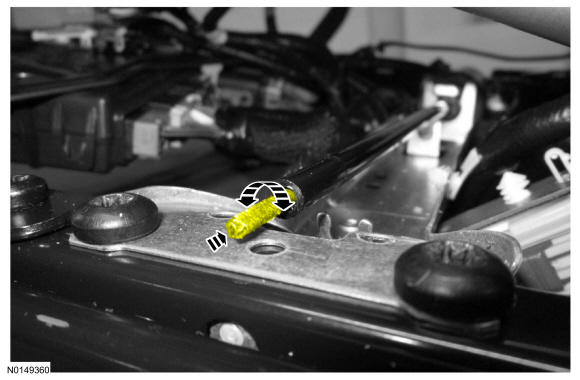

    NOTE: The cable felt covering should not be visible when the cable is correctly engaged to the horizontal motor square drive.
    • Push the cable into the horizontal motor square drive twisting back and forth to engage the cable.
GFD95534Courtesy of FORD MOTOR COMPANY

  1. 3.

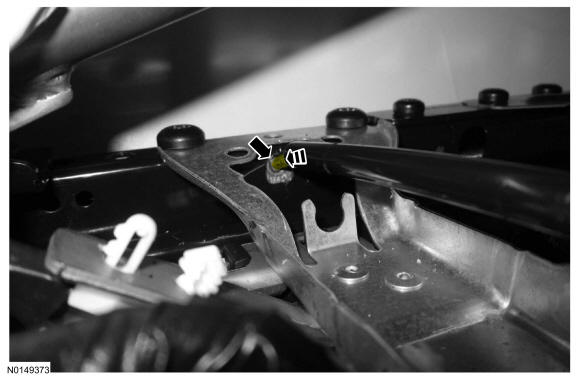

GFD95535Courtesy of FORD MOTOR COMPANY

  1. 4.

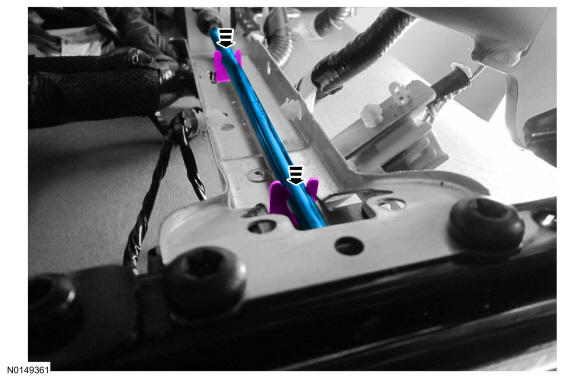

GFD95536Courtesy of FORD MOTOR COMPANY

All seats except limo or livery seats

  1. 5.

GFD95488Courtesy of FORD MOTOR COMPANY

  1. 6.

GFD95467Courtesy of FORD MOTOR COMPANY

  1. 7.

GFD95489Courtesy of FORD MOTOR COMPANY

Limo or livery seats

  1. 8.

GFD95472Courtesy of FORD MOTOR COMPANY

  1. 9.

GFD95471Courtesy of FORD MOTOR COMPANY

  1. 10.

GFD95470Courtesy of FORD MOTOR COMPANY

All seats

  1. 11.

    Install the front seat. Refer to Seat - Front .
