Front Seat Motor Cable: Removal

WARNING: This page is about a different car, the 2015 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Wear protective gloves when handling components or parts that have pointed or sharp edges. Failure to follow this instruction may result in serious personal injury.

NOTE: Typical driver seat shown, others similar.

All seats

1.

Remove the seat. Refer to Seat - Front .

All seats except limo or livery seats

2.

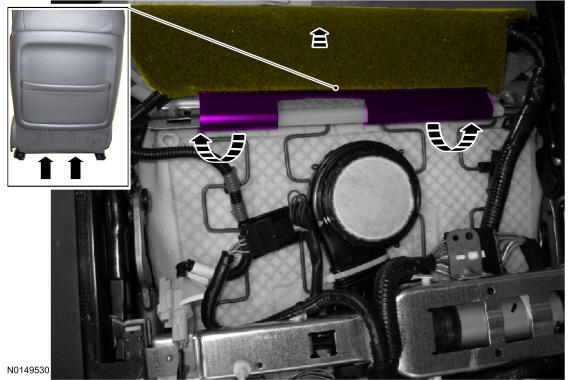

GFD95466

Courtesy of FORD MOTOR COMPANY

3.

GFD95467

Courtesy of FORD MOTOR COMPANY

4.

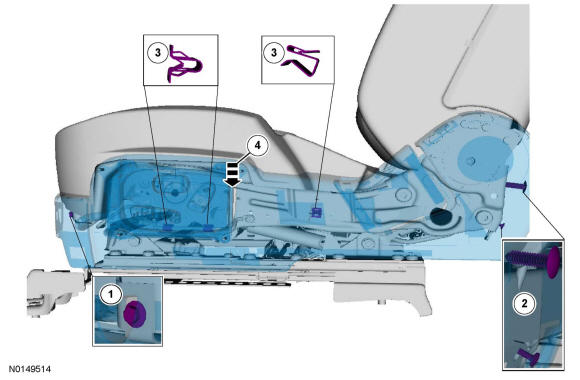

GFD95468

Courtesy of FORD MOTOR COMPANY

Limo or livery seats

5.
1. 1.

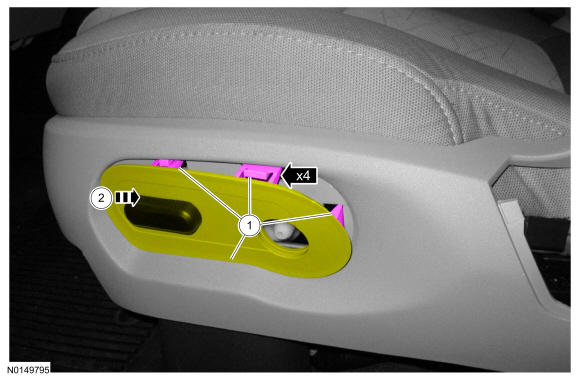

  From under the cushion side shield, push out from behind the seat control switch bezel to start detachment.
1. 2.

  NOTE: Do not pull out at the front of the seat control switch bezel, slide it rearward. Otherwise, seat control switch bezel retainers can break.

  -

GFD95469

Courtesy of FORD MOTOR COMPANY

6.

GFD95470

Courtesy of FORD MOTOR COMPANY

7.

GFD95471

Courtesy of FORD MOTOR COMPANY

8.

GFD95472

Courtesy of FORD MOTOR COMPANY

All seats

9.

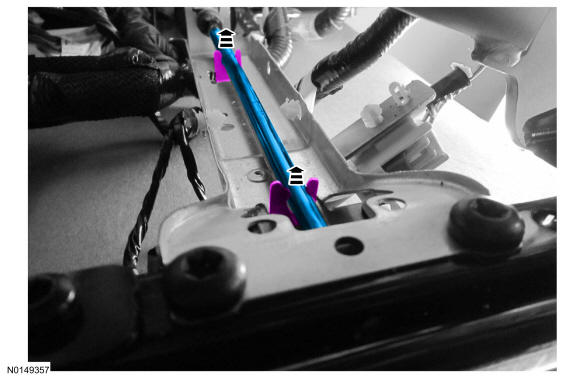

GFD95532

Courtesy of FORD MOTOR COMPANY
