Removal And Installation

WARNING: This page is about a different car, the 2015 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For parts identification and location, refer to Seat - Exploded View, Second Row .

1.

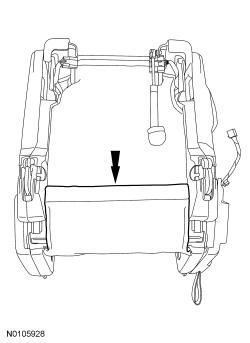

Separate the J-clips and open the cushion cover.

Courtesy of FORD MOTOR COMPANY

2.

Separate the electrical connector from the front outboard seat track foot (if equipped), remove the 2 outboard inner cover screws and position the cover out of the way.

Courtesy of FORD MOTOR COMPANY

3.

Remove the 3 screws and separate the outboard outer cover.

Courtesy of FORD MOTOR COMPANY

4.

Separate the pin-type retainer, disconnect the lumbar switch and remove the outboard outer cover.

Courtesy of FORD MOTOR COMPANY

5.

Disengage the retainers and remove the power lumbar switch.

6.

To install, reverse the removal procedure.
