Seat Armrest Second Row, Livery

WARNING: This page is about a different car, the 2015 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

Seat Armrest - Second Row, Livery

NOTE: 60 percent seat shown, 40 percent seat similar.
NOTE: Removal steps in this procedure may contain installation details.

  1. 1.

    Remove the rear seat. Refer to Seat Backrest - Second Row, Livery .

  1. 2.

GFD95624Courtesy of FORD MOTOR COMPANY

  1. 3.

    • To install, tighten to 20 Nm (177 lb-in).

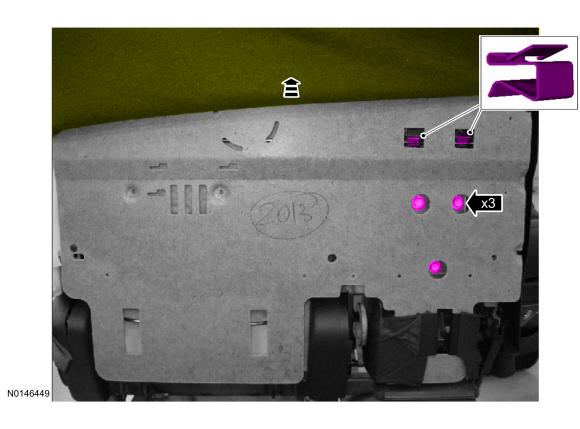

GFD95625Courtesy of FORD MOTOR COMPANY

  1. 4.

GFD95626Courtesy of FORD MOTOR COMPANY

  1. 5.

    To install, reverse the removal procedure.
