Seat Backrest Cover Second Row, Livery

WARNING: This page is about a different car, the 2015 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

Seat Backrest Cover - Second Row, Livery

General Equipment

Hog Ring Pliers

NOTE: 60 percent seat shown, 40 percent seat similar.

NOTE: Removal steps in this procedure may contain installation details.

1.

Remove the second row seat. Refer to Seat - Second Row, Livery .

2.

Remove the head restraint guide sleeves. Refer to Head Restraint Guide Sleeve .

Courtesy of FORD MOTOR COMPANY

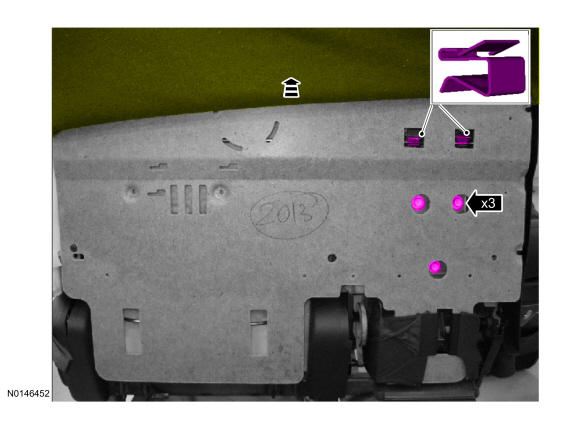

4.
- To install, tighten to 20 Nm (177 lb-in).

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

7.

To install, reverse the removal procedure. General Equipment: Hog Ring Pliers.
