Seat Backrest Second Row, Livery

WARNING: This page is about a different car, the 2015 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

Seat Backrest - Second Row, Livery

NOTE: 60 percent seat shown, 40 percent seat similar.
NOTE: Removal steps in this procedure may contain installation details.

  1. 1.

    Remove the second row seat. Refer to Seat - Second Row, Livery .

  1. 2.

    Remove the head restraint guide sleeves. Refer to Head Restraint Guide Sleeve .

  1. 3.

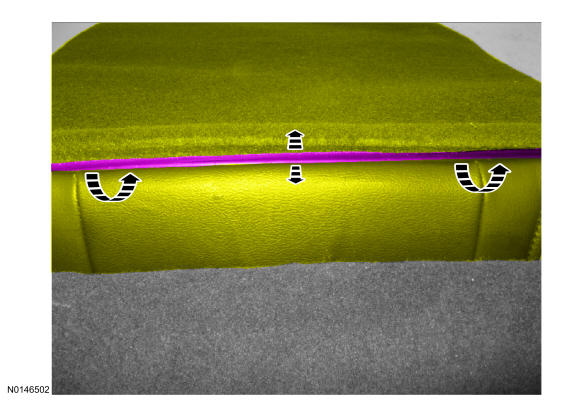

GFD95624Courtesy of FORD MOTOR COMPANY

  1. 4.

    • To install, tighten to 20 Nm (177 lb-in).

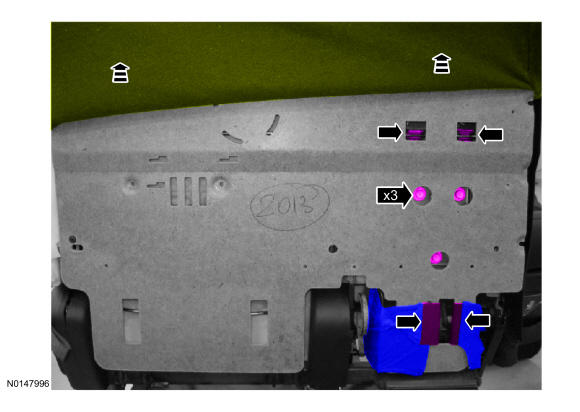

GFD95627Courtesy of FORD MOTOR COMPANY

  1. 5.

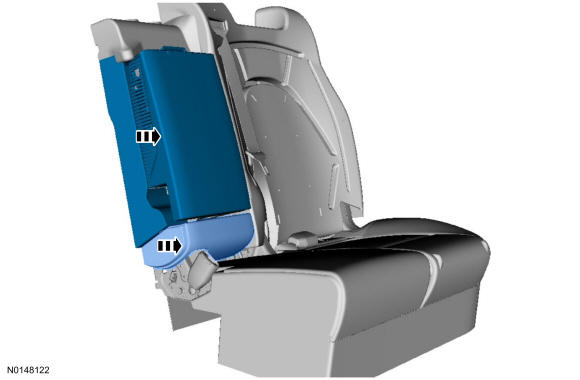

GFD95626Courtesy of FORD MOTOR COMPANY

  1. 6.

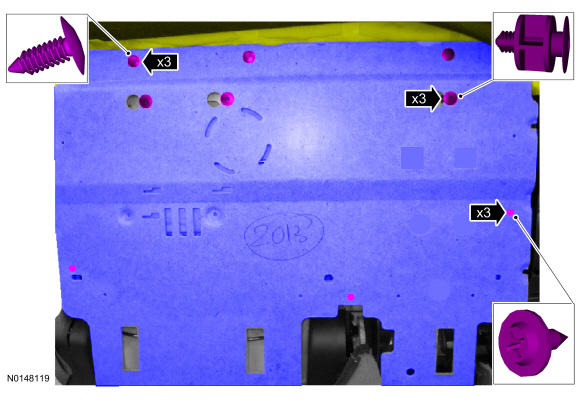

GFD95628Courtesy of FORD MOTOR COMPANY

  1. 7.

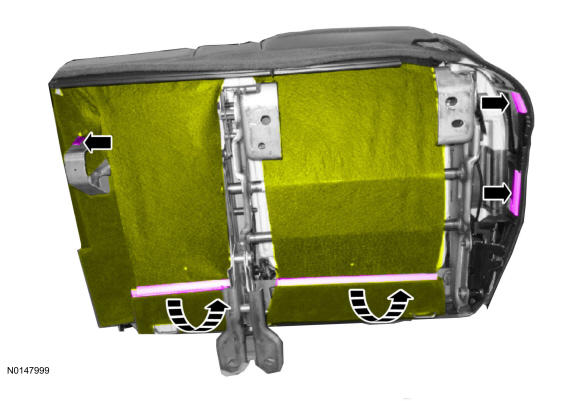

GFD95629Courtesy of FORD MOTOR COMPANY

  1. 8.

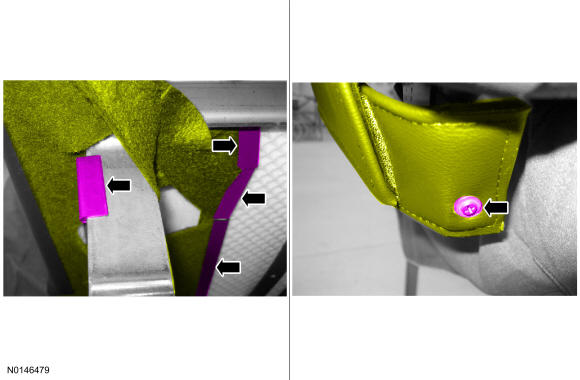

GFD95630Courtesy of FORD MOTOR COMPANY

  1. 9.

    • To install, tighten to 40 Nm (30 lb-ft).

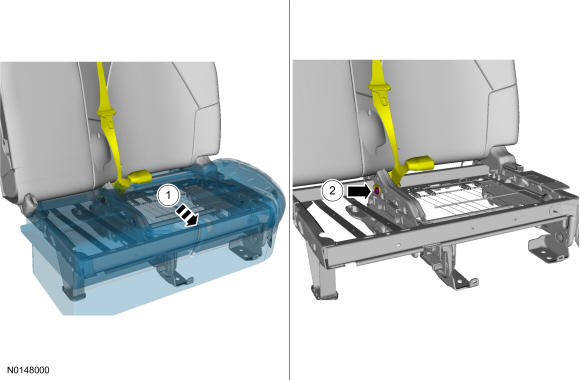

GFD95631Courtesy of FORD MOTOR COMPANY

  1. 10.

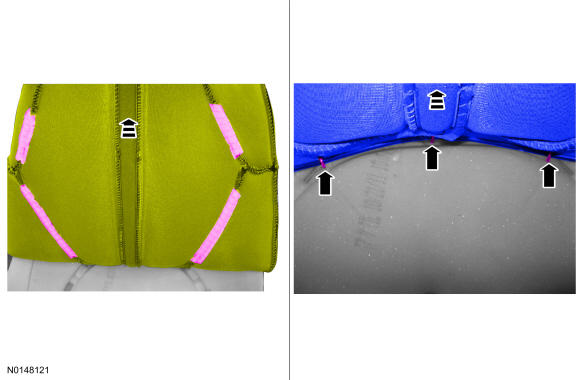

GFD95632Courtesy of FORD MOTOR COMPANY

  1. 11.

GFD95633Courtesy of FORD MOTOR COMPANY

  1. 12.

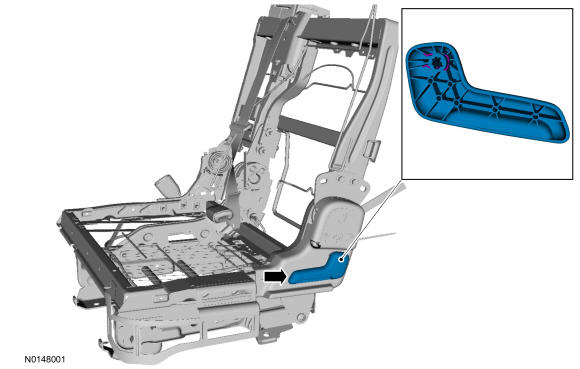

GFD95634Courtesy of FORD MOTOR COMPANY

  1. 13.

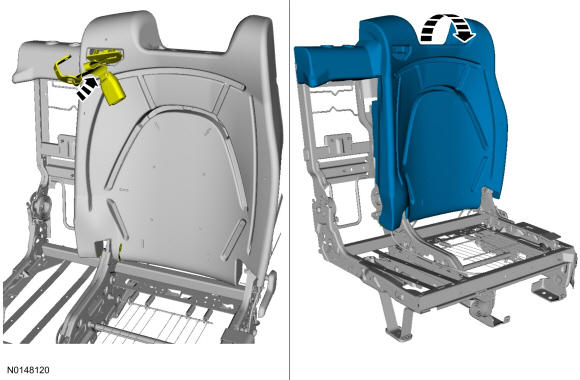

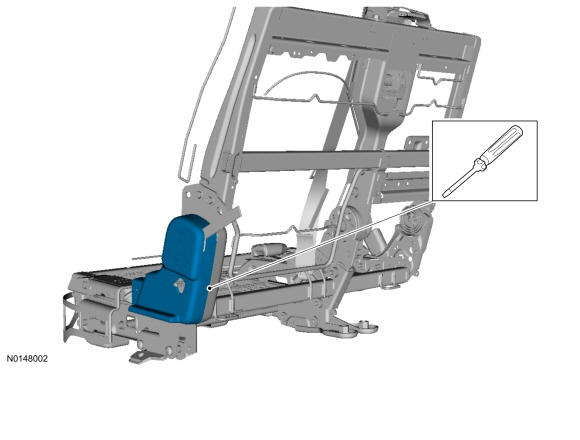

GFD95635Courtesy of FORD MOTOR COMPANY

  1. 14.

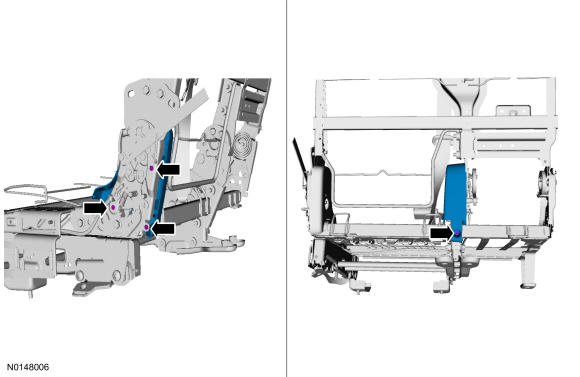

GFD95636Courtesy of FORD MOTOR COMPANY

  1. 15.

    NOTE: Follow the unique instructions or graphic for this step in installation.

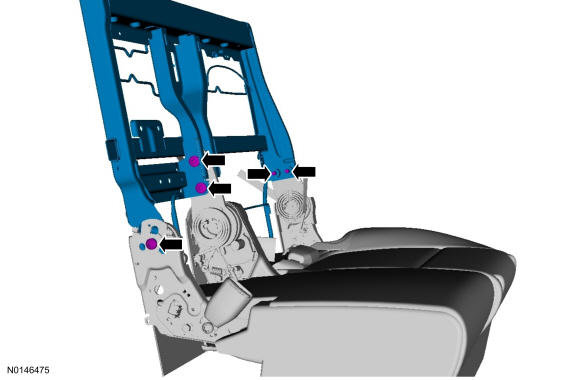

GFD95637Courtesy of FORD MOTOR COMPANY

  1. 16.

    To install, reverse the removal procedure.

  1. 17.

    Turn the component Clockwise (CW) through 4 complete turns.

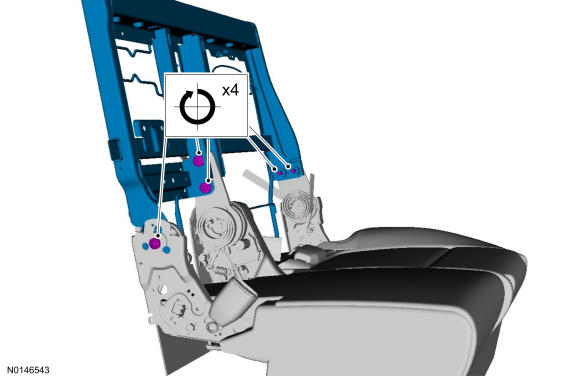

GFD95638Courtesy of FORD MOTOR COMPANY

  1. 18.

    • Tighten to 48 Nm (35 lb-ft).
GFD95639Courtesy of FORD MOTOR COMPANY
