Seat Recliner Second Row, Inboard, Livery

WARNING: This page is about a different car, the 2015 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

Seat Recliner - Second Row, Inboard, Livery

NOTE: 60 percent seat shown, 40 percent seat similar.

NOTE: Removal steps in this procedure may contain installation details.

1.

Remove rear seat. Refer to Seat - Second Row, Livery .

2.

Remove the rear seat backrest. Refer to Seat Backrest - Second Row, Livery .

3.

Remove the rear seat cushion. Refer to Seat Cushion Cover - Second Row, Livery .

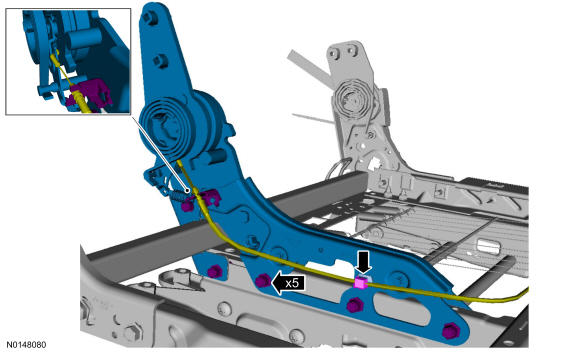

4.

NOTE: Follow the unique instructions or graphic for this step in installation.

Courtesy of FORD MOTOR COMPANY

5.

To install, reverse the removal procedure.

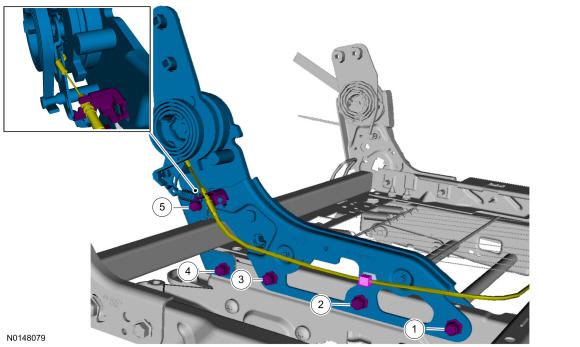

6.
- Tighten to 48 Nm (35 lb-ft).

Courtesy of FORD MOTOR COMPANY
