Seat Recliner Second Row, Outboard, Livery

WARNING: This page is about a different car, the 2015 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

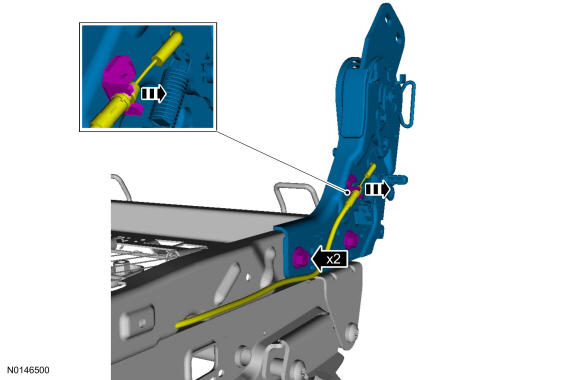

Seat Recliner - Second Row, Outboard, Livery

NOTE: 60 percent seat shown, 40 percent seat similar.

NOTE: Removal steps in this procedure may contain installation details.

1.

Remove the rear seat. Refer to Seat - Second Row, Livery .

2.

Remove the seat backrest. Refer to Seat Backrest - Second Row, Livery .

3.
- To install, tighten to 48 Nm (35 lb-ft).

Courtesy of FORD MOTOR COMPANY

4.

To install, reverse the removal procedure.
